ชุดติดตั้งเพิ่ม สัญญาณเตือน for BMW R45-R65LS..78-85 R45 (1978)
This ชุดติดตั้งเพิ่ม สัญญาณเตือน technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | สวิตช์เพิ่มเติม | 1 | 61311243007 | $101.04 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | ฝาปิดกัน | 1 | 61311233922 | $8.61 | Shop at ECS Tuning | |||||
| 02 | ฝาปิดกัน | 1 | 61311243644 | $8.22 | Shop at ECS Tuning | |||||
| 03 | ไดโอด | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 05 | แหวนรองแบบสปริง | B5 | 1 | 09/1980 | 07119932098 | $0.38 | Shop at ECS Tuning | |||

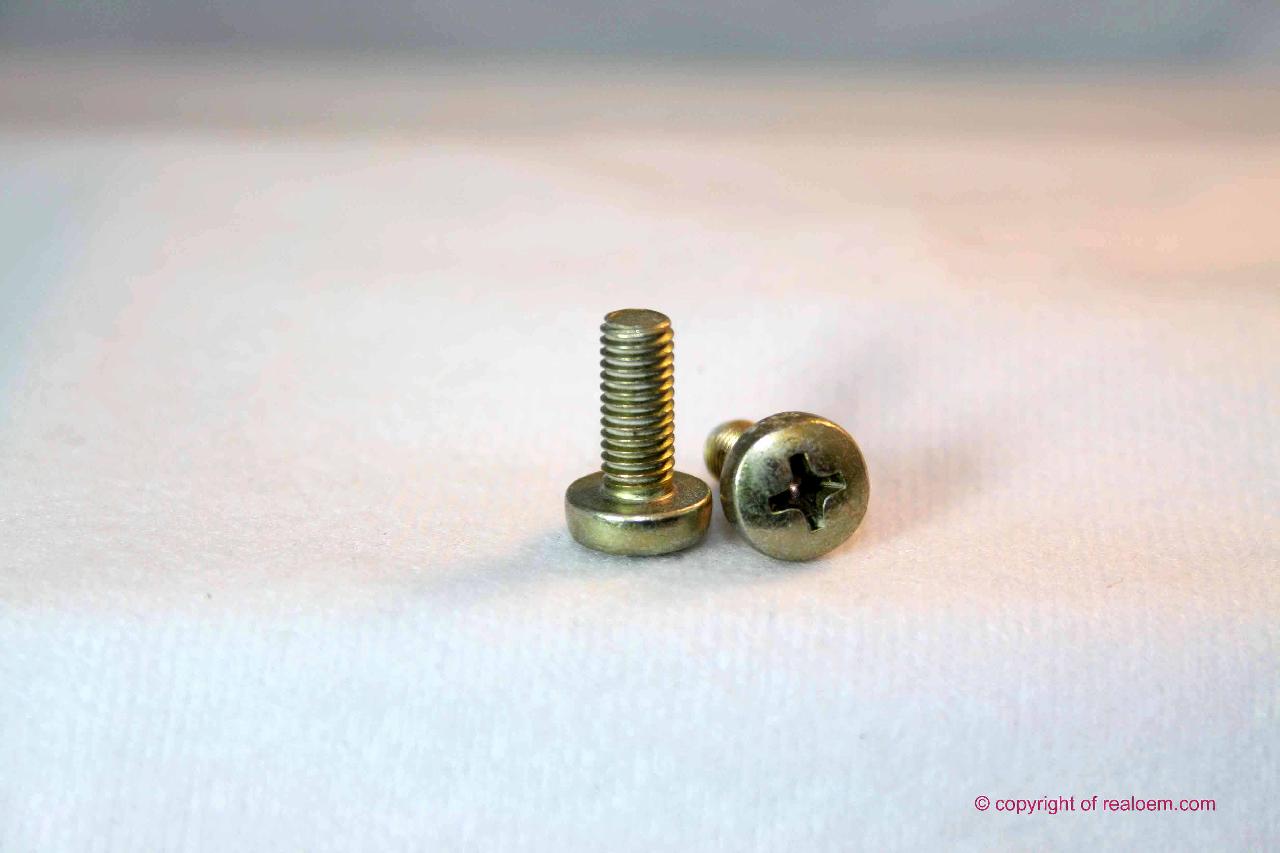

| 06 | สกรูหัวทรงกระบอก | M5X12-ZN | 1 | 09/1980 | 07119907627 | $0.43 | Shop at ECS Tuning | |||
| 07 | ตัวต่อสาย | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 08 | ชุดสายไฟสัญญาณเตือน | 1 | 09/1980 | 61111243680 | $33.42 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี รุ่นประเทศฝรั่งเศส |
Y741A=ใช่ |
|||||||||
| 08 | ชุดสายไฟสัญญาณเตือน | 1 | 09/1980 | 61121243699 | ENDED | Shop at ECS Tuning | ||||
| 09 | รีเลย์ | GELB | 1 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 09 | มินิรีเลย์ | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 10 | ชุดติดตั้งเพิ่ม สัญญาณเตือน | 1 | 09/1980 | 61311243885 | ENDED | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี รุ่นประเทศฝรั่งเศส |
Y741A=ใช่ |
|||||||||
| 10 | ชุดติดตั้งเพิ่ม สัญญาณเตือน | 1 | 09/1980 | 61311243886 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R45 ชุดติดตั้งเพิ่ม สัญญาณเตือน?
- This technical diagram illustrates the ชุดติดตั้งเพิ่ม สัญญาณเตือน within the อุปกรณ์ไฟฟ้าของรถยนต์โดยทั่วไป group for the R45-R65LS..78-85 R45 produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the สวิตช์เพิ่มเติม (Part #61311243007).
- Which models use the hardware listed in this ชุดติดตั้งเพิ่ม สัญญาณเตือน?
- The hardware and components featured in the ชุดติดตั้งเพิ่ม สัญญาณเตือน are specific to the R45-R65LS..78-85 R45 produced during 1978. These technical specifications ensure that parts like the สวิตช์เพิ่มเติม (61311243007) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ชุดติดตั้งเพิ่ม สัญญาณเตือน assembly?
- Each item in the ชุดติดตั้งเพิ่ม สัญญาณเตือน corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R45, you can identify the สวิตช์เพิ่มเติม by locating its position on the schematic, which then links to the official BMW part number 61311243007 for the อุปกรณ์ไฟฟ้าของรถยนต์โดยทั่วไป section.
