ชุดสายไฟ for BMW 5 Series E12 528 (1977)

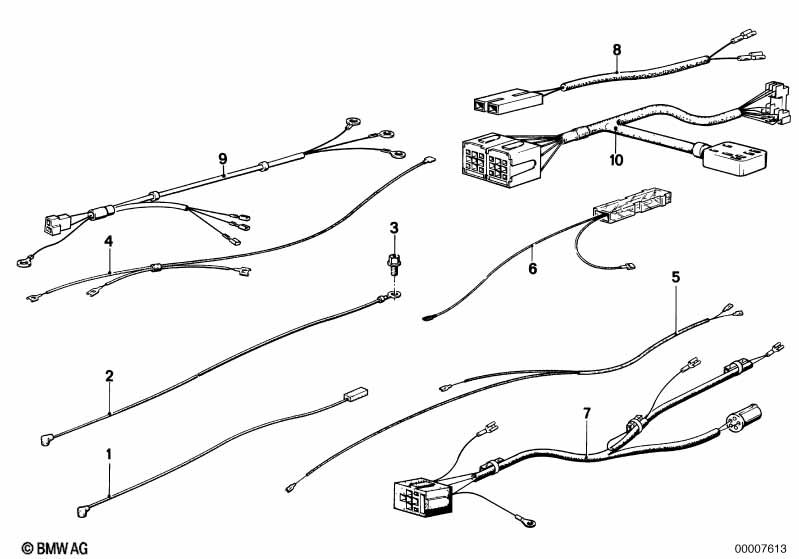

This ชุดสายไฟ technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | สายไฟที่ทำความร้อนกระจกหลัง ขั้วบวก | 1 | 61121355637 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | สายไฟที่ทำความร้อนกระจกหลัง ขั้วลบ | 1 | 61121355636 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 03 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M6X10-Z4-2 | 1 | 07119915008 | ENDED | Shop at ECS Tuning | ||||
| 04 | สายไฟ, ไฟห้องเก็บสัมภาระ | 1 | 61121355618 | $7.57 | ENDED | Shop at ECS Tuning | ||||
| 05 | ชุดสายไฟของไฟห้องเครื่องยนต์ | 1 | 61121355713 | ENDED | Shop at ECS Tuning | |||||
| 06 | สายเคเบิลหลอดไฟลิ้นชักเก็บของ | 1 | 06/1976 | 61121363130 | $8.37 | ENDED | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี รุ่นประเทศออสเตรเลีย |
L810A=ใช่ |
|||||||||
| 07 | ชุดสายไฟไฟแสดงเบรก | 1 | 08/1976 | 61121363437 | ENDED | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี ซันรูฟแบบเลื่อน/เอียง |
=ใช่ |
|||||||||
| 09 | ชุดสายไฟของไฟภายในรถ ตรงกลาง | 1 | 61121364087 | $21.99 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
