แคล้มป์ยึดสาย/ตัวยึดสาย for BMW 3 Series E30 M3 (1990)

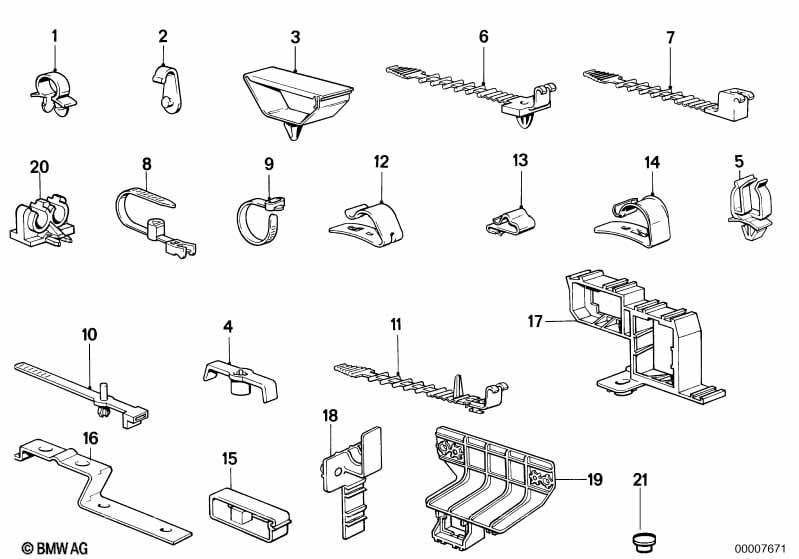

This แคล้มป์ยึดสาย/ตัวยึดสาย technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ตัวยึดสาย | D=16,8MM | X | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 01 | ตัวยึดสาย | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 04 | ตัวยึดสาย | X | 61138353438 | $0.72 | Shop at ECS Tuning | |||||
| 05 | ตัวยึดสาย | D=4-14MM | X | 61131369883 | $0.62 | Shop at ECS Tuning | ||||
| 06 | ตัวต่อสาย | X | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 07 | ตัวต่อสาย | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 08 | ตัวต่อสาย | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 09 | ตัวต่อสาย | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 10 | ตัวต่อสาย | 80MM | X | 12521266650 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 11 | ตัวต่อสาย | X | 61131370660 | $0.41 | Shop at ECS Tuning | |||||
| 12 | แคลมป์ยึดสายเคเบิล | X | 61131351135 | $0.41 | ENDED | Shop at ECS Tuning | ||||
| 13 | แคลมป์ยึดสายเคเบิล | D=5MM | X | 61131353126 | $0.42 | Shop at ECS Tuning | ||||
| 14 | แคลมป์ยึดสายเคเบิล | D=12MM | X | 61131355345 | $0.82 | ENDED | Shop at ECS Tuning | |||
| 15 | ตัวยึดสาย | 1 | 61131380381 | $0.43 | Shop at ECS Tuning | |||||
| 18 | ตัวยึดรีเลย์ | 1 | 09/1986 | 61131378991 | $1.88 | Shop at ECS Tuning | ||||
| 19 | ตัวยึดปลั๊กต่อ | 1 | 09/1986 | 61131378990 | $5.82 | ENDED | Shop at ECS Tuning | |||
| 21 | ปุ่มกด | 1 | 61131373669 | $0.93 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
