ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน for BMW 5 Series E39 528i (2000)

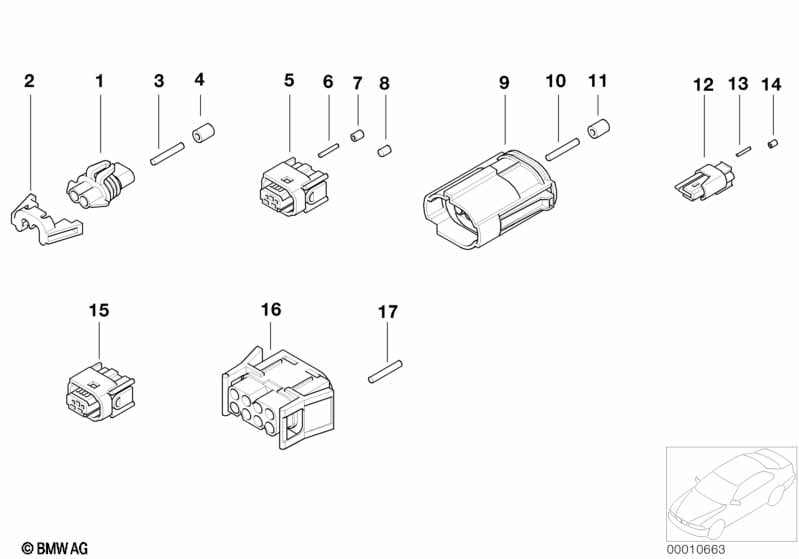

This ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ให้ใช้กับไฟสูงเท่านั้น | ||||||||||
| 01 | Plug terminal black | 2 POL. | 2 | 61138364494 | $1.82 | Shop at ECS Tuning | ||||
| ให้ใช้กับไฟต่ำเท่านั้น | ||||||||||
| 01 | ตัวเรือนซอคเก็ต สีเทา | 2 POL. | 2 | 61138364498 | $2.33 | Shop at ECS Tuning | ||||
| 03 | หัวต่อสัญญาณแบบสปริง, JPT, ELA + สายไฟ | 0,5-1,0 MM² AG | 8 | 61130070584 | Shop at ECS Tuning | |||||
| 04 | แหวนซีล | X | 61131382195 | $0.48 | Shop at ECS Tuning | |||||
| ให้ใช้กับสัญญาณไฟเลี้ยวด้านหน้าเท่านั้น | ||||||||||
| 05 | เบ้าหลอดอเนกประสงค์ไม่ได้ให้รหัส | 4 POL. | 2 | 61138365356 | $3.10 | Shop at ECS Tuning | ||||
| 06 | หน้าสัมผัสซอคเก็ต MQS ELA พร้อมสายเคเบิล | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| 08 | ปลอกยาง | MQS Ø=3,6 | X | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| ให้ใช้กับไฟข้างเท่านั้น | ||||||||||
| 09 | เบ้าหลอดอเนกประสงค์ไม่ได้ให้รหัส | 2 POL. | 2 | 61138352390 | $19.65 | Shop at ECS Tuning | ||||
| 10 | ปลอกปลั๊กกลม 2.5 ELA พร้อมสายไฟ | 0,75-1,0 MM² | X | 61130007569 | $2.27 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี ไฟเลี้ยวเสริม และ เซ็นเซอร์อุณหภูมิภายนอก |
=ใช่ =ใช่ |
|||||||||
| 12 | เบ้าหลอดอเนกประสงค์ไม่ได้ให้รหัส | 2 POL. | 2 | 12/2003 | 61138795954 | Shop at ECS Tuning | ||||
| 12 | ชุดอุปกรณ์ซ่อม, กล่องซอคเก็ต | 2 POL. | 2 | 61132359999 | Shop at ECS Tuning | |||||
| 13 | หน้าสัมผัสเต้ารับ MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| 13 | หน้าสัมผัสซอคเก็ต MQS ELA พร้อมสายเคเบิล | 0,2- 0,5 QMM | X | 12/2003 | 61130005199 | $1.88 | Shop at ECS Tuning | |||
| 13 | หน้าสัมผัสซอคเก็ต MQS ELA พร้อมสายเคเบิล | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 14 | การซีลนำแบบเดี่ยว | 0,13-0,35 MM² | X | 61138366247 | $0.18 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี ตัวควบคุมลำแสงไฟหน้าในแนวดิ่ง |
=ใช่ |
|||||||||
| 15 | เบ้าหลอดอเนกประสงค์ไม่ได้ให้รหัส | 4 POL. | 2 | 61138365356 | $3.10 | Shop at ECS Tuning | ||||
| 17 | ปลอกปลั๊กกลม 2.5 | 0,5-1,0MM² | X | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
| 17 | ปลอกปลั๊กกลม 2.5 พร้อมสายไฟ | 0,5-1,0 MM² SN | X | 61135A07B73 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน?
- This technical diagram illustrates the ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน within the ระบบไฟฟ้าทั่วไป group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Plug terminal black (Part #61138364494).
- Which models use the hardware listed in this ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน?
- The hardware and components featured in the ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Plug terminal black (61138364494) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน assembly?
- Each item in the ปลั๊กประเภทต่างๆจำแนกตามการใช้งาน corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Plug terminal black by locating its position on the schematic, which then links to the official BMW part number 61138364494 for the ระบบไฟฟ้าทั่วไป section.
