ระบบปัดน้ำฝน for BMW 1502-2002tii 2002 (1970)

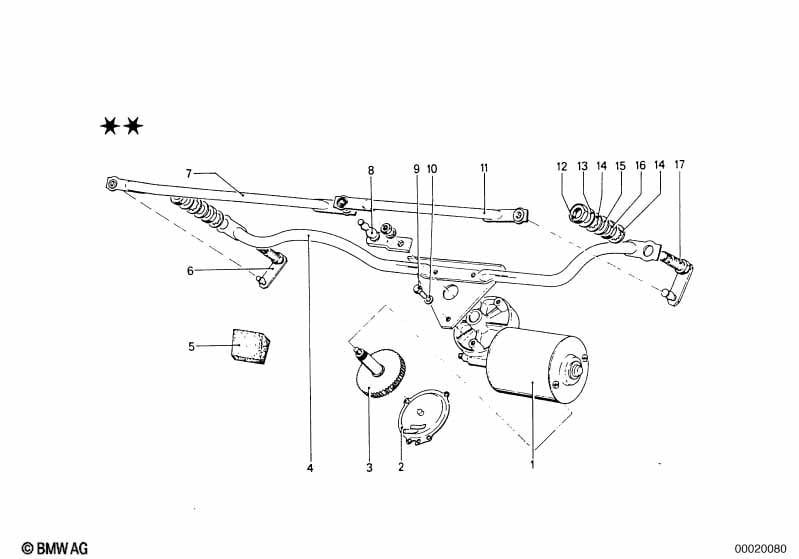

This ระบบปัดน้ำฝน technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | มอเตอร์ที่ปัดน้ำฝน | 1 | 04/1972 | 61611350054 | ENDED | Shop at ECS Tuning | ||||
| 02 | แผ่นปิด | 1 | 61611351969 | ENDED | Shop at ECS Tuning | |||||
| 03 | เพลาขับ | 1 | 61611352194 | $65.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | คอนโซล | 1 | 61618444124 | ENDED | Shop at ECS Tuning | |||||
| 05 | ฐาน | 1 | 61611350462 | ENDED | Shop at ECS Tuning | |||||
| 06 | แกนหมุนที่ปัดน้ำฝน ด้านขวา | 1 | 61618444109 | $44.44 | ENDED | Shop at ECS Tuning | ||||
| 07 | ก้านขับ | 1 | 61618444119 | $68.94 | Shop at ECS Tuning | |||||
| 08 | ข้อเหวี่ยง | 1 | 61618444100 | $47.86 | ENDED | Shop at ECS Tuning | ||||
| 09 | โบลท์หัวหกเหลี่ยม | M6X12-8.8-ZNNIV | 3 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 10 | แหวนรองแบบซี่ฟัน | A6,4 | 3 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 11 | ก้านขับ | 1 | 61618444115 | $67.02 | Shop at ECS Tuning | |||||
| 12 | น็อต | M16*1 | 2 | 61618644180 | ENDED | Shop at ECS Tuning | ||||
| 13 | แหวนรอง | 2 | 61618444182 | $4.98 | Shop at ECS Tuning | |||||
| 14 | แหวนรองแบบซี่ฟัน | J16,5 | 4 | 07119936337 | ENDED | Shop at ECS Tuning | ||||
| 16 | น็อตหกเหลี่ยม | 2 | 61618744121 | $7.09 | Shop at ECS Tuning | |||||
| 17 | ตัวยึดเสริม | 1 | 61618444105 | $39.83 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 ระบบปัดน้ำฝน?
- This technical diagram illustrates the ระบบปัดน้ำฝน within the ระบบไฟฟ้าทั่วไป group for the 1502-2002tii 2002 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the มอเตอร์ที่ปัดน้ำฝน (Part #61611350054).
- Which models use the hardware listed in this ระบบปัดน้ำฝน?
- The hardware and components featured in the ระบบปัดน้ำฝน are specific to the 1502-2002tii 2002 produced during 1970. These technical specifications ensure that parts like the มอเตอร์ที่ปัดน้ำฝน (61611350054) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ระบบปัดน้ำฝน assembly?
- Each item in the ระบบปัดน้ำฝน corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the มอเตอร์ที่ปัดน้ำฝน by locating its position on the schematic, which then links to the official BMW part number 61611350054 for the ระบบไฟฟ้าทั่วไป section.
