สายซ่อม,ชุดสายไฟหลัก,ป้องกันสัญญาณรบกวน for BMW MINI F66 JCW

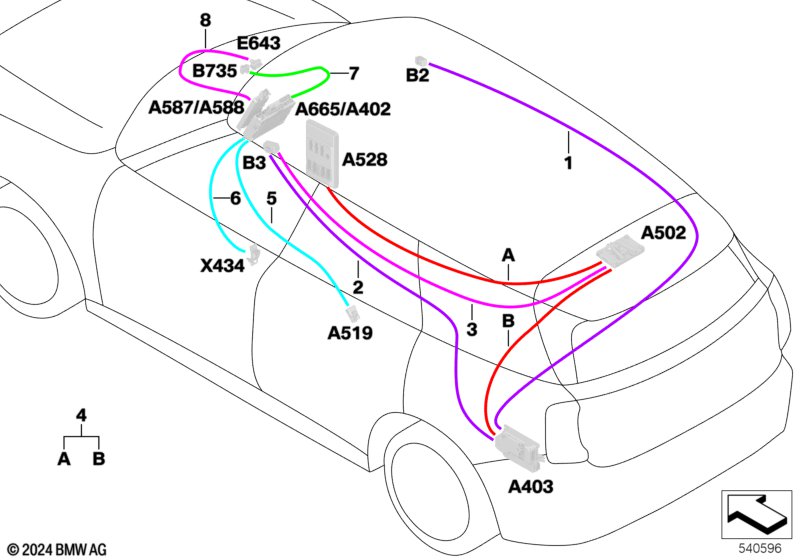

This สายซ่อม,ชุดสายไฟหลัก,ป้องกันสัญญาณรบกวน technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | สายไฟซ่อม, ไมโครโฟน | L= 5994MM | 1 | 61115B43797 | NoS | Shop at ECS Tuning | ||||
| 02 | สายไฟซ่อม, ไมโครโฟน | L= 4814MM | 1 | 61115B43796 | NoS | Shop at ECS Tuning | ||||
| 03 | สายไฟซ่อม, ไมโครโฟน | L= 4494MM | 1 | 61115B35C83 | NoS | Shop at ECS Tuning | ||||
| 04 | สายไฟซ่อม, สายไฟหุ้ม, มีฉนวน | L= 4979MM | 1 | 61115B35CB8 | Shop at ECS Tuning | |||||
| 05 | สาย HSD, พอร์ต USB/ช่องเสียบ Aux | L= 3772MM | 1 | 61115B35C45 | NoS | Shop at ECS Tuning | ||||
| จาก A665*13B ตัวควบคุมโดเมนสาระบันเท | ||||||||||
| 06 | สายเคเบิล HSD, IDC - DCS | L= 2325MM | 1 | 61115A839E1 | Shop at ECS Tuning | |||||
| จาก A665*12B ตัวควบคุมโดเมนสาระบันเท | ||||||||||
| 06 | สายเคเบิล HSD เฮดยูนิต - HUD | L= 2310MM | 1 | 61115A839E2 | Shop at ECS Tuning | |||||
| จาก A665*3B สาระบันเทิงตัวควบค | ||||||||||
| 06 | สายเคเบิล HSD เฮดยูนิต - CDD | L= 2705MM | 1 | 61115A93DD6 | NoS | Shop at ECS Tuning | ||||
| 07 | สายโคแอกซ์เชียล, กล้อง Augmented Reality | L= 2801MM | 1 | 61115B35C82 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (ไม่มีการเก็บชิ้นส่วนที่อยู่ตรงกลาง)
