ชิ้นส่วนแยก แผงหน้าปัดเสริม for BMW R45-R65LS..78-85 R65LS (1983)

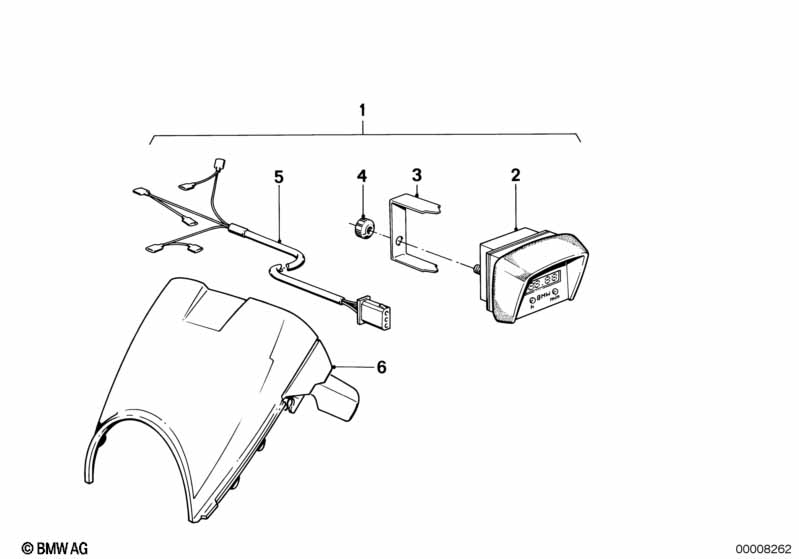

This ชิ้นส่วนแยก แผงหน้าปัดเสริม technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ชุดติดตั้งเพิ่ม แผงหน้าปัดเสริม | 1 | 62139056144 | ENDED | Shop at ECS Tuning | |||||
| 02 | นาฬิกา | 1 | 62131244760 | $336.06 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | โครงรอบ | 1 | 62131244337 | $5.05 | Shop at ECS Tuning | |||||
| 04 | น็อตหัวร่อง | 1 | 62131244341 | $1.09 | Shop at ECS Tuning | |||||
| 05 | ชุดสายไฟนาฬิกา | 1 | 61121244372 | ENDED | Shop at ECS Tuning | |||||
| 06 | แผงปิดเสา แผงหน้าปัด | 1 | 46632301759 | $90.51 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS ชิ้นส่วนแยก แผงหน้าปัดเสริม?
- This technical diagram illustrates the ชิ้นส่วนแยก แผงหน้าปัดเสริม within the เครื่องวัดต่างๆ group for the R45-R65LS..78-85 R65LS produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the ชุดติดตั้งเพิ่ม แผงหน้าปัดเสริม (Part #62139056144).
- Which models use the hardware listed in this ชิ้นส่วนแยก แผงหน้าปัดเสริม?
- The hardware and components featured in the ชิ้นส่วนแยก แผงหน้าปัดเสริม are specific to the R45-R65LS..78-85 R65LS produced during 1983. These technical specifications ensure that parts like the ชุดติดตั้งเพิ่ม แผงหน้าปัดเสริม (62139056144) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ชิ้นส่วนแยก แผงหน้าปัดเสริม assembly?
- Each item in the ชิ้นส่วนแยก แผงหน้าปัดเสริม corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the ชุดติดตั้งเพิ่ม แผงหน้าปัดเสริม by locating its position on the schematic, which then links to the official BMW part number 62139056144 for the เครื่องวัดต่างๆ section.
