ชุดควบคุมระบบปรับอากาศ for BMW 3 Series E46 316i (2001)

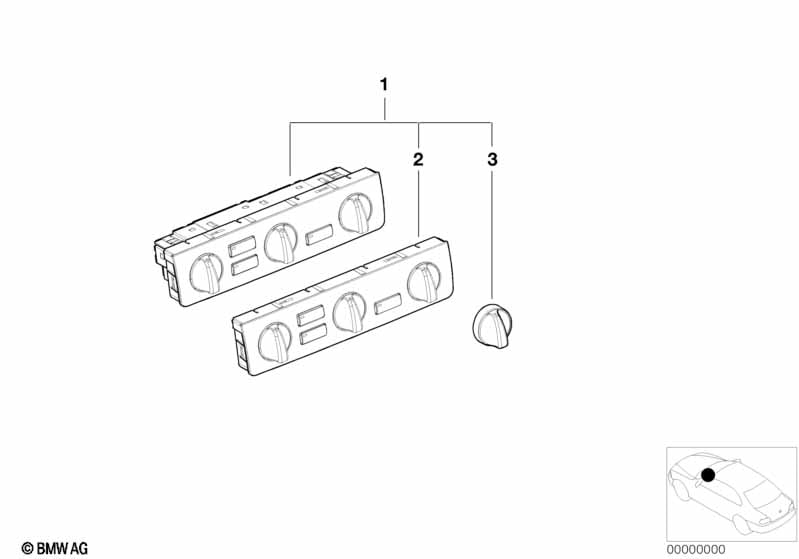

This ชุดควบคุมระบบปรับอากาศ technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ชุดควบคุมระบบปรับอากาศ | 1 | 64116931839 | $301.00 | Shop at ECS Tuning | |||||
| 02 | แผงควบคุมระบบปรับอากาศ | 1 | 64116904311 | $83.23 | Shop at ECS Tuning | |||||
| 03 | ปุ่มหมุน | 1 | 64116908200 | $7.58 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 316i ชุดควบคุมระบบปรับอากาศ?
- This technical diagram illustrates the ชุดควบคุมระบบปรับอากาศ within the การทำความร้อนและการปรับอากาศ group for the 3 Series E46 316i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the ชุดควบคุมระบบปรับอากาศ (Part #64116931839).
- Which models use the hardware listed in this ชุดควบคุมระบบปรับอากาศ?
- The hardware and components featured in the ชุดควบคุมระบบปรับอากาศ are specific to the 3 Series E46 316i produced during 2001. These technical specifications ensure that parts like the ชุดควบคุมระบบปรับอากาศ (64116931839) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ชุดควบคุมระบบปรับอากาศ assembly?
- Each item in the ชุดควบคุมระบบปรับอากาศ corresponds to the numbered list below the illustration. For the 3 Series E46 316i, you can identify the ชุดควบคุมระบบปรับอากาศ by locating its position on the schematic, which then links to the official BMW part number 64116931839 for the การทำความร้อนและการปรับอากาศ section.
