บูสเตอร์ / ตัวยึด for BMW 7 Series G70 740i (2025)

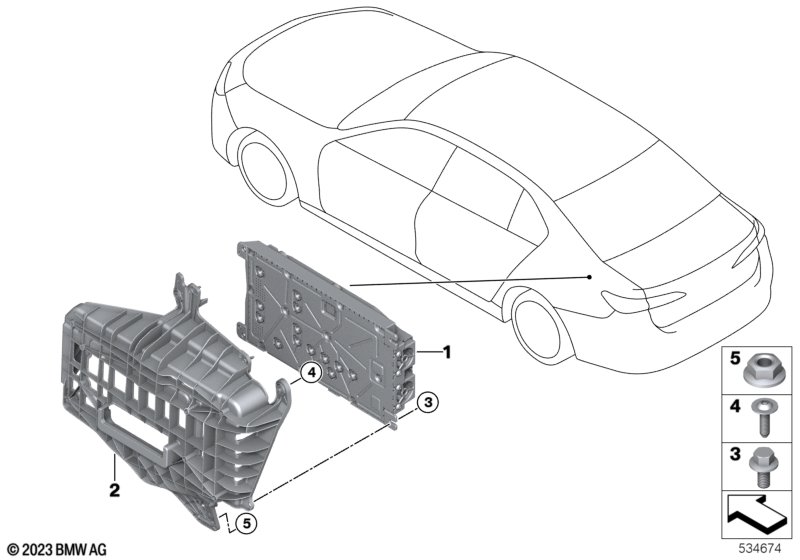

This บูสเตอร์ / ตัวยึด technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

บูสเตอร์ / ตัวยึด
No. รายละเอียด Supp. จำนวน  จาก   Up To  Part Number ราคา Notes
สำหรับรถยนต์ที่มี
Bowers & Wilkins High End Sound System

S6F1A=ไม่
01 บูสเตอร์ ALEV 3 4CH 1 65125A83C47 Shop at ECS Tuning
สำหรับรถยนต์ที่มี
Bowers & Wilkins High End Sound System

S6F1A=ใช่
01 บูสเตอร์ ALEV 4 1 65125A83C48 Shop at ECS Tuning
02 ตัวยึด, บูสเตอร์ 1 65158723223 Shop at ECS Tuning
03 โบลท์หัวหกเหลี่ยม M5X10 4 07119906043 $2.84 Shop at ECS Tuning
04 โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง M6X16-U2-ZNS3 2 07119902913 Shop at ECS Tuning
05 น็อตหกเหลี่ยม M6-8-SC-ZNNIV S 1 34506859776 Shop at ECS Tuning

See Also

Frequently Asked Questions

What assembly is shown in the BMW 7 Series G70 740i บูสเตอร์ / ตัวยึด?
This technical diagram illustrates the บูสเตอร์ / ตัวยึด within the ระบบเครื่องเสียง, นำทาง, ข้อมูล group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the บูสเตอร์ (Part #65125A83C47).
Which models use the hardware listed in this บูสเตอร์ / ตัวยึด?
The hardware and components featured in the บูสเตอร์ / ตัวยึด are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the บูสเตอร์ (65125A83C47) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the บูสเตอร์ / ตัวยึด assembly?
Each item in the บูสเตอร์ / ตัวยึด corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the บูสเตอร์ by locating its position on the schematic, which then links to the official BMW part number 65125A83C47 for the ระบบเครื่องเสียง, นำทาง, ข้อมูล section.
