คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า for BMW 3 Series E30 325i (1991)

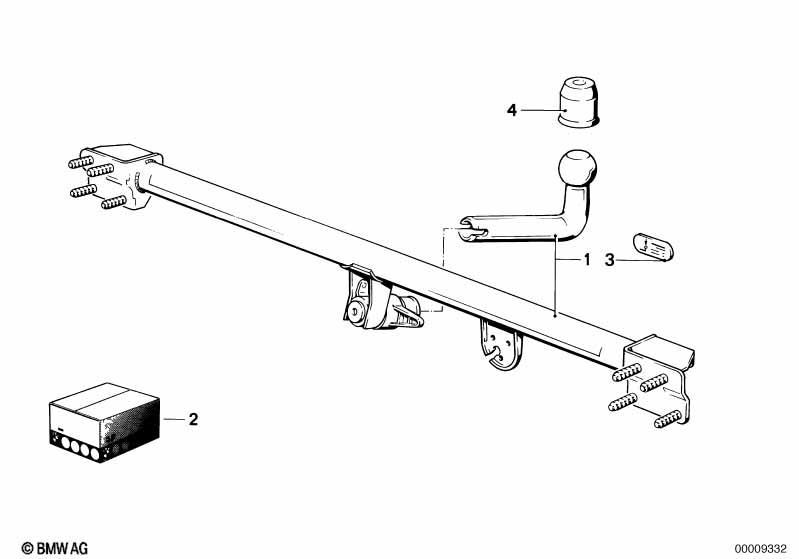

This คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ให้ใช้กับน้ำหนักลากพ่วง 1200 กก. เท่านั้น |
||||||||||
| 01 | คัปปลิงเทรลเล่อร์แบบถอดออกได้ | WESTFALIA | 1 | 01/1988 | 71601134233 | ENDED | Shop at ECS Tuning | |||
| 02 | ชุดชิ้นส่วนไฟฟ้า | 1 | 01/1988 | 71609061116 | Shop at ECS Tuning | |||||
| 03 | แผ่นป้ายระบุประเภทน้ำหนักของเหล็กลาก | 50KG | 1 | 71601135081 | Shop at ECS Tuning | |||||
| 03 | แผ่นป้ายระบุประเภทน้ำหนักของเหล็กลาก | 75KG | 1 | 71601135082 | Shop at ECS Tuning | |||||
| 03 | แผ่นป้ายระบุประเภทน้ำหนักของเหล็กลาก | MIN 50KG | 1 | 71601135285 | ENDED | Shop at ECS Tuning | ||||
| 04 | ฝาปิดทรงกลมสำหรับตัวเกี่ยวลากพ่วง | 1 | 71601246076 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า?
- This technical diagram illustrates the คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า within the อะไหล่+อุปกรณ์เสริม(เครื่อง+แชสซี) group for the 3 Series E30 325i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the คัปปลิงเทรลเล่อร์แบบถอดออกได้ (Part #71601134233).
- Which models use the hardware listed in this คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า?
- The hardware and components featured in the คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า are specific to the 3 Series E30 325i produced during 1991. These technical specifications ensure that parts like the คัปปลิงเทรลเล่อร์แบบถอดออกได้ (71601134233) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า assembly?
- Each item in the คัปปลิงเทรลเล่อร์/ชิ้นส่วนไฟฟ้า corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the คัปปลิงเทรลเล่อร์แบบถอดออกได้ by locating its position on the schematic, which then links to the official BMW part number 71601134233 for the อะไหล่+อุปกรณ์เสริม(เครื่อง+แชสซี) section.
