เข็มขัดนิรภัย ด้านหลัง for BMW 2500-3.3Li 3.0Si (1975)

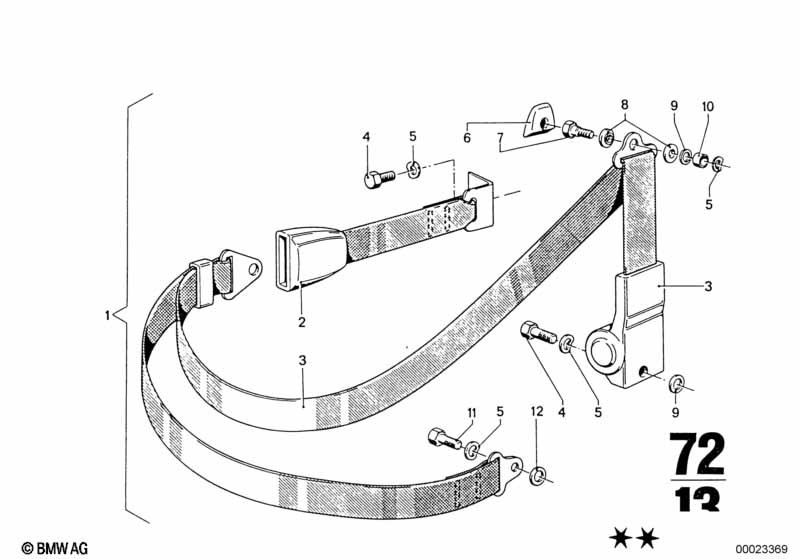

This เข็มขัดนิรภัย ด้านหลัง technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | เข็มขัดนิรภัย ด้านหลัง | AUTOFLUG | 2 | 72111840191 | $156.24 | ENDED | Shop at ECS Tuning | |||
| 02 | เข็มขัดส่วนล่าง ด้านหลัง | REPA | 2 | 72111849656 | ENDED | Shop at ECS Tuning | ||||
| 02 | เข็มขัดส่วนล่าง ด้านหลัง | AUTOFLUG | 2 | 72111868996 | $32.37 | ENDED | Shop at ECS Tuning | |||
| 03 | เข็มขัดนิรภัย | 2 | 72111840193 | ENDED | Shop at ECS Tuning | |||||
| 03 | เข็มขัดนิรภัย | 2 | 72111840196 | ENDED | Shop at ECS Tuning | |||||
| 04 | โบลท์หัวหกเหลี่ยม | 7/16X30 | 4 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 05 | แหวนรองแบบสปริง | 11,2 / 19 | 8 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 06 | ฝาปิด | AUTOFLUG | 2 | 72111815731 | ENDED | Shop at ECS Tuning | ||||
| 07 | สกรู | 2 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | ||||
| 08 | แหวนรองกันรุน | 2 | 72111845046 | $0.22 | Shop at ECS Tuning | |||||
| 09 | แหวนรอง | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 10 | ปลอกสเปเซอร์ | 2 | 72111802803 | $0.77 | Shop at ECS Tuning | |||||
| 11 | สกรูแบบปลอก | 7/16"X22 | 2 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | |||
| 12 | ปลอกสเปเซอร์ | 2 | 72111813915 | $0.72 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
