Kayış tahriki,Titreşim damperi for BMW 7 Series E32 740iL (1994)

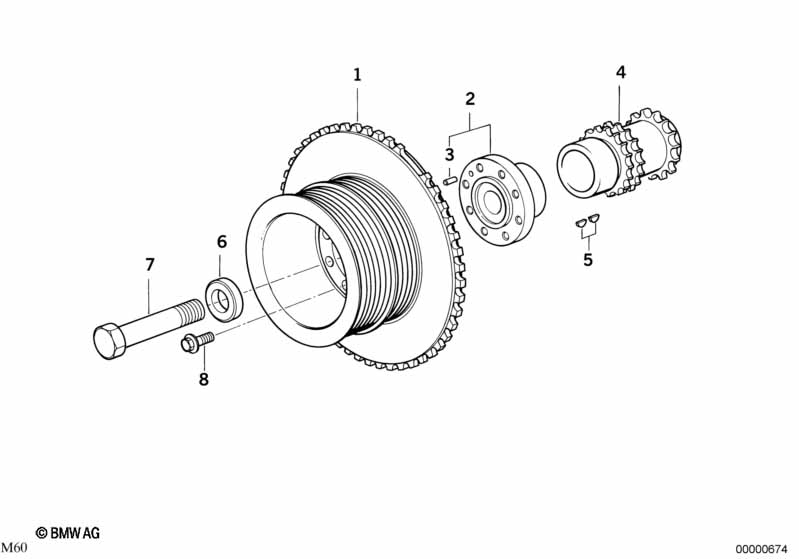

This Kayış tahriki,Titreşim damperi technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Titreşim damperi | 1 | 11231704342 | $563.33 | +ana | Shop at ECS Tuning | ||||
| 02 | Tekerlek göbeği | 1 | 11231736532 | $61.18 | Shop at ECS Tuning | |||||
| 03 | Merkez saplaması | 1 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 04 | Zincir dişlisi | 1 | 11211702217 | $110.43 | Shop at ECS Tuning | |||||
| 05 | Rondelalı kama | 5X6.5 | 2 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 06 | Alt besleme pulu | 1 | 11231713619 | $9.32 | Shop at ECS Tuning | |||||
| sadece aşağıdakilere uygun | ||||||||||
| -- | Altı köşeli cıvata | M18X1,5X73 | X | 11231725636 | $3.97 | Kalmadı | Shop at ECS Tuning | |||
| 07 | Emniyetli vida | M18X1,5X65 | 1 | 11231736585 | $6.43 | Shop at ECS Tuning | ||||
| 08 | Altı köşeli cıvata, Pullu | M8X16-Z3 | 8 | 07119915066 | $0.62 | Shop at ECS Tuning | ||||
Not
- +ana= ilave olarak ana masraf (eski parçanın iade edilme ihtimali)
- Kalmadı = parçanın üretimi durdurulmuştur.
