Distribütör for BMW 1502-2002tii 2002tii (1971)

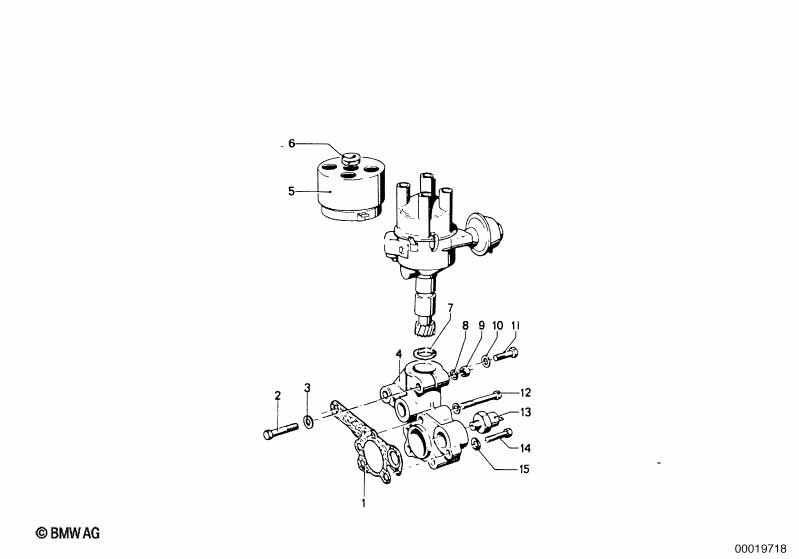

This Distribütör technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Asbestsiz conta | 1 | 12111734032 | $1.67 | Shop at ECS Tuning | |||||
| 02 | Altı köşeli cıvata | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 03 | Alt besleme pulu | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Ateşleme distribütörü flanşı | 1 | 12111252932 | $70.62 | Shop at ECS Tuning | |||||
| Araçlar: Ülkeye özgü versiyon, Fransa |
L813A=Evet |
|||||||||
| 05 | Kapak | 1 | 02/1962 | 12/1975 | 12118630048 | Kalmadı | Shop at ECS Tuning | |||
| 06 | Kauçuk rondela | 1 | 02/1962 | 12/1975 | 61131350089 | Kalmadı | Shop at ECS Tuning | |||
| 07 | O-Ring | 1 | 12118530508 | $1.67 | Shop at ECS Tuning | |||||
| 08 | Rondela | B6 | 4 | 07119932072 | $0.09 | Kalmadı | Shop at ECS Tuning | |||
| 09 | Altı köşeli somun | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Rondela | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Altı köşeli cıvata | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 12 | Altı köşeli cıvata | M6X50 8.8 ZNS3 | 3 | 07119902993 | $0.59 | Shop at ECS Tuning | ||||
| 13 | Yağ basınç şalteri | M12X1.5 | 1 | 61311243414 | $13.31 | +ana | Shop at ECS Tuning | |||
| 13 | Yağ basınç şalteri | 0,2 -0,5 /M10X1 | 1 | 61311350385 | $11.38 | +ana | Shop at ECS Tuning | |||
| 14 | Altı köşeli cıvata | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | Kalmadı | Shop at ECS Tuning | |||
| 15 | Pul | ZÜNDVERTEILER | 1 | 12110002735 | $1.71 | Kalmadı | Shop at ECS Tuning | |||
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
- +ana= ilave olarak ana masraf (eski parçanın iade edilme ihtimali)
