Distribütör-Münferit parçalar for BMW 1502-2002tii 2002tii (1971)

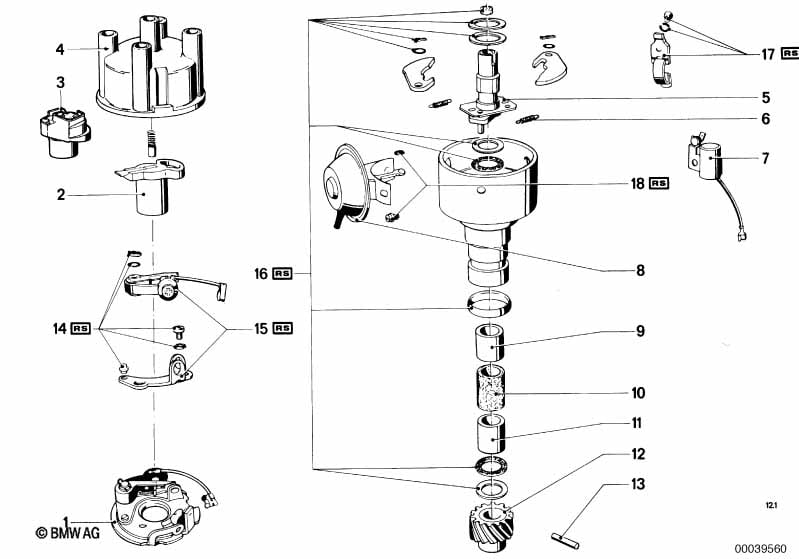

This Distribütör-Münferit parçalar technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Devre kesici kontaklar | 1 | 07/1968 | 10/1975 | 12111350265 | Kalmadı | Shop at ECS Tuning | |||
| 02 | Dağıtıcı rotor | 1 | 12111354503 | $12.22 | Shop at ECS Tuning | |||||
| 03 | Dağıtıcı rotor | 5000-OHM | 1 | 12111362221 | $26.90 | Kalmadı | Shop at ECS Tuning | |||
| 04 | Distribütör kapağı | 1 | 01/1968 | 07/1976 | 12111270927 | Shop at ECS Tuning | ||||
| 06 | Helezon yay | 1 | 01/1968 | 07/1976 | 12111351439 | Kalmadı | Shop at ECS Tuning | |||
| 06 | Helezon yay | 1 | 07/1968 | 10/1975 | 12111355589 | Kalmadı | Shop at ECS Tuning | |||
| 07 | Kondansatör | 1 | 01/1968 | 07/1976 | 12111351448 | $15.74 | Shop at ECS Tuning | |||
| 09 | Kovan | 1 | 07/1968 | 10/1975 | 12118530603 | Kalmadı | Shop at ECS Tuning | |||
| 10 | Yağlama fitili | 1 | 12111350261 | $3.60 | Shop at ECS Tuning | |||||
| 11 | Yatak burcu | 1 | 07/1968 | 10/1975 | 12111350260 | $3.49 | Kalmadı | Shop at ECS Tuning | ||
| 12 | Helozoni dişli | 1 | 12118630126 | $69.06 | Kalmadı | Shop at ECS Tuning | ||||
| 13 | Yarıklı pim | 4X20 | 1 | 07119943082 | $4.63 | Kalmadı | Shop at ECS Tuning | |||
| 14 | Parça takımı, Devre kesici plaka | 1 | 07/1968 | 10/1975 | 12111351435 | $0.28 | Kalmadı | Shop at ECS Tuning | ||
| 15 | Onarım seti, Devre kesici kontaklar | 1 | 01/1968 | 07/1976 | 12111267393 | $9.18 | Shop at ECS Tuning | |||
| 16 | Onarım seti, Distribütör-Aks | 1 | 12118630239 | $16.51 | Shop at ECS Tuning | |||||
| 17 | Onarım seti, Ateşleme dağıtıcı parç. | 1 | 12118630245 | $5.73 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
