Yakıt hattı for BMW 5 Series E28 520i

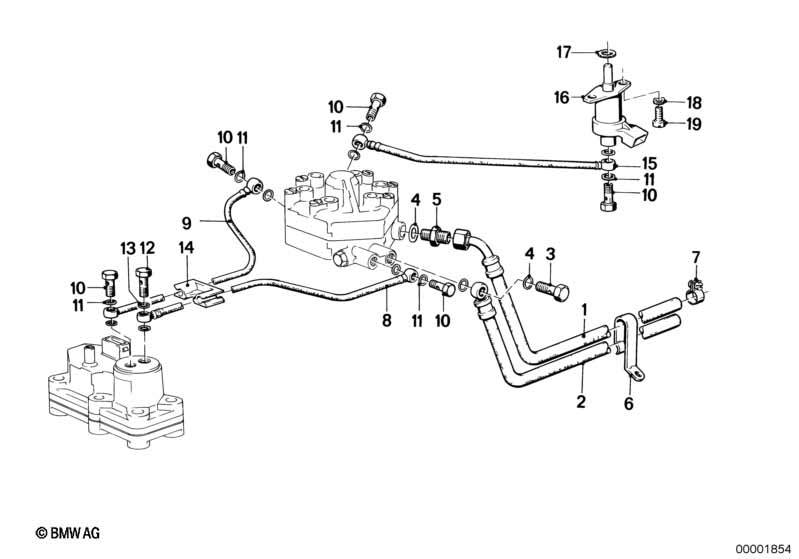

This Yakıt hattı technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Yakıt hattı | 1 | 09/1982 | 13311277693 | Shop at ECS Tuning | |||||
| 02 | Yakıt hattı | 1 | 09/1982 | 13311272778 | $15.68 | Kalmadı | Shop at ECS Tuning | |||
| 02 | Yakıt hortumu | 8X13MM | 1 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| sadece aşağıdakiler ile bağlantılı olarak | ||||||||||
| -- | Halka bağlantısı | D=12MM | 1 | 13311263262 | $5.23 | Kalmadı | Shop at ECS Tuning | |||
| -- | Hortum kelepçesi | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Banjo vida | 1 | 09/1982 | 07119905427 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Conta | A12X15-CU | 3 | 09/1982 | 07119963129 | $0.11 | Shop at ECS Tuning | |||
| 05 | Vidalı ağızlar | A8-ZN | 1 | 09/1982 | 07119964525 | $17.62 | Kalmadı | Shop at ECS Tuning | ||
| 06 | Sabitleme askısı | 1 | 09/1982 | 13311277709 | Kalmadı | Shop at ECS Tuning | ||||
| 07 | Hortum kelepçesi | L12-15 | 2 | 09/1982 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 08 | Yakıt hattı | 1 | 09/1982 | 13311276686 | $11.72 | Shop at ECS Tuning | ||||
| 09 | Yakıt hattı | 1 | 09/1982 | 13311276687 | $5.47 | Shop at ECS Tuning | ||||
| 10 | Banjo vida | 5 | 09/1982 | 13531264360 | $2.90 | Shop at ECS Tuning | ||||
| 11 | Conta | A08X11,5-CU | X | 09/1982 | 07119963042 | $0.09 | Shop at ECS Tuning | |||
| 12 | Banjo vida | 1 | 09/1982 | 13311265734 | $3.67 | Kalmadı | Shop at ECS Tuning | |||
| 13 | Conta | A10X13,5-CU | 2 | 09/1982 | 07119963072 | $0.11 | Shop at ECS Tuning | |||
| 14 | Tutucu, Yakıt hattı | 1 | 09/1982 | 13311276688 | Kalmadı | Shop at ECS Tuning | ||||
| 15 | Yakıt hattı | 1 | 09/1982 | 13311276685 | Kalmadı | Shop at ECS Tuning | ||||
| 16 | Marş valfi | 1 | 09/1982 | 13641267453 | $159.98 | Kalmadı | Shop at ECS Tuning | |||
| 17 | O-Ring | 1 | 09/1982 | 13641360378 | $1.25 | Shop at ECS Tuning | ||||
| 18 | Rondela siyah | B6-ZN | 2 | 09/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 18 | Alt besleme pulu | 5.3-140 HV-ZNS | 2 | 09/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 18 | Rondela | B6-ZNS3 | 2 | 09/1982 | 07119904496 | $1.78 | Kalmadı | Shop at ECS Tuning | ||
| 19 | ISA-cıvata | M6X16-8.8-ZNNIV | 2 | 09/1982 | 07129905536 | $0.64 | Shop at ECS Tuning | |||
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
