Yüksek basınç akümülatörü/Enjektör/Kablo for BMW 1 Series F21 LCI 116d

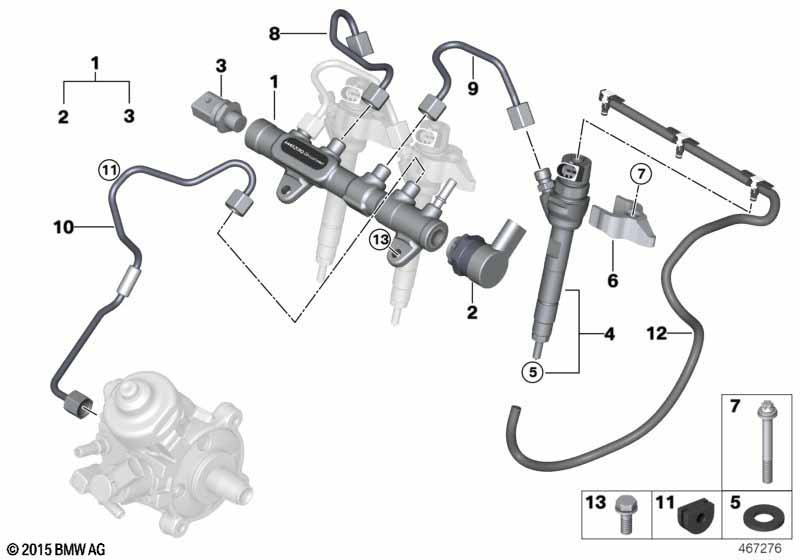

This Yüksek basınç akümülatörü/Enjektör/Kablo technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 116d. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Basınç haznesi | 1 | 13538511629 | Shop at ECS Tuning | ||||||
| 02 | Basınç ayar valfi | 1 | 13537801992 | Shop at ECS Tuning | ||||||
| 03 | Basınç sezicisi | 1 | 13538577623 | Shop at ECS Tuning | ||||||
| 04 | Enjektör | CRI2-20 | 3 | 13538511630 | Shop at ECS Tuning | |||||
| 05 | Conta | 3 | 13532247156 | $3.63 | Shop at ECS Tuning | |||||
| 06 | Sabitleme çenesi, Enjektör | 3 | 13537809798 | Shop at ECS Tuning | ||||||
| 07 | Vida | 3 | 13537805256 | Shop at ECS Tuning | ||||||
| 08 | Basınç hattı | 1 | 13538579244 | Shop at ECS Tuning | ||||||
| 09 | Basınç hattı | 2 | 03/2018 | 13538472971 | Shop at ECS Tuning | |||||
| 10 | Basınç hattı | 1 | 13538579241 | Shop at ECS Tuning | ||||||
| 11 | Kauçuk rondela | 1 | 13537812876 | Shop at ECS Tuning | ||||||
| 12 | Kablo, Kaçak yağ | 1 | 13538583460 | Shop at ECS Tuning | ||||||
| 13 | Altı köşeli cıvata, Pullu | M8X22 | 2 | 09/2016 | 07119905739 | $0.62 | Shop at ECS Tuning | |||
| 13 | Altı köşe yuvarlak cıvata | M8X25 | 2 | 09/2016 | 07119907174 | Shop at ECS Tuning |
