Yakıt pompası/Yakıt filtresi for BMW 5 Series E12 528i

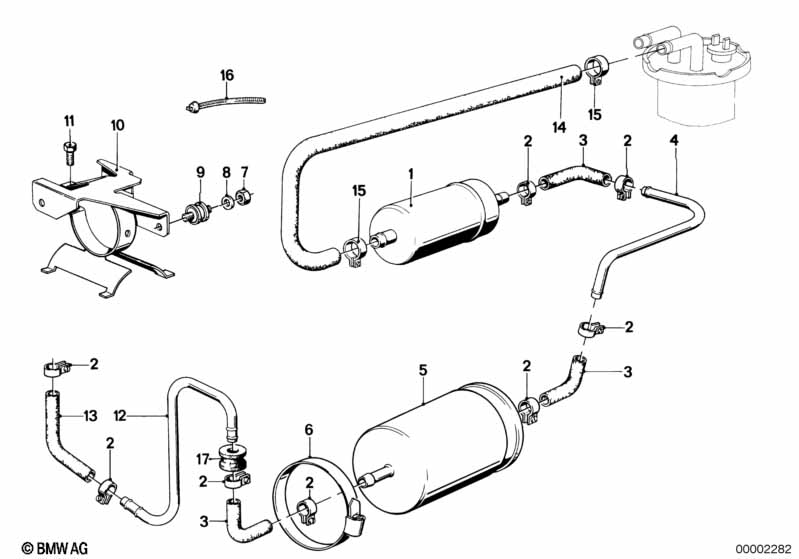

This Yakıt pompası/Yakıt filtresi technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Yakıt pompası | 1 | 08/1978 | 16141178751 | $387.81 | Shop at ECS Tuning | ||||
| Sadece ön sevk pompası ile birlikte | ||||||||||
| 01 | Yakıt pompası | 1 | 08/1978 | 16141179232 | $372.11 | Shop at ECS Tuning | ||||
| 02 | Hortum kelepçesi | L12-15 | 8 | 08/1978 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 03 | Hortum | 3 | 08/1978 | 16121176821 | $4.11 | Kalmadı | Shop at ECS Tuning | |||
| 04 | Yakıt hattı | 1 | 08/1978 | 16121150216 | $3.20 | Kalmadı | Shop at ECS Tuning | |||
| 05 | Yakıt filtresi | 1 | 08/1978 | 13321268231 | Shop at ECS Tuning | |||||
| 06 | Hortum kelepçesi | L71-78 | 1 | 08/1978 | 07129952129 | $1.48 | Shop at ECS Tuning | |||
| 07 | Altı köşeli somun | M6-8-ZNNIV SI | 6 | 08/1978 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 08 | Rondela siyah | B6-ZN | 6 | 08/1978 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 09 | Lastik takoz | 3 | 08/1978 | 16121177891 | $10.82 | Shop at ECS Tuning | ||||
| 10 | Tutma sacı | 1 | 08/1978 | 16121122276 | $11.00 | Kalmadı | Shop at ECS Tuning | |||
| 11 | Altı köşeli cıvata, Pullu | M6X16-U1-8.8 | 1 | 08/1978 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 12 | Yakıt hattı | 1 | 08/1978 | 16121150217 | $53.30 | Kalmadı | Shop at ECS Tuning | |||
| 13 | Yakıt hortumu | 8X13MM | X | 08/1978 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 14 | Yakıt hortumu | 12X18 | X | 08/1978 | 16121176440 | $15.25 | Shop at ECS Tuning | |||
| 15 | Hortum kelepçesi | L15-19 | 2 | 08/1978 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 16 | Kablo kelepçesi | L=292MM/B=4,8MM | 1 | 08/1978 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Yakıt pompası/Yakıt filtresi?
- This technical diagram illustrates the Yakıt pompası/Yakıt filtresi within the Yakıt beslemesi group for the 5 Series E12 528i. It provides a detailed exploded view of the components, identifying key parts such as the Yakıt pompası (Part #16141178751).
- Which models use the hardware listed in this Yakıt pompası/Yakıt filtresi?
- The hardware and components featured in the Yakıt pompası/Yakıt filtresi are specific to the 5 Series E12 528i. These technical specifications ensure that parts like the Yakıt pompası (16141178751) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Yakıt pompası/Yakıt filtresi assembly?
- Each item in the Yakıt pompası/Yakıt filtresi corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Yakıt pompası by locating its position on the schematic, which then links to the official BMW part number 16141178751 for the Yakıt beslemesi section.
