Yakıt musluğu for BMW R45-R65LS..78-85 R45

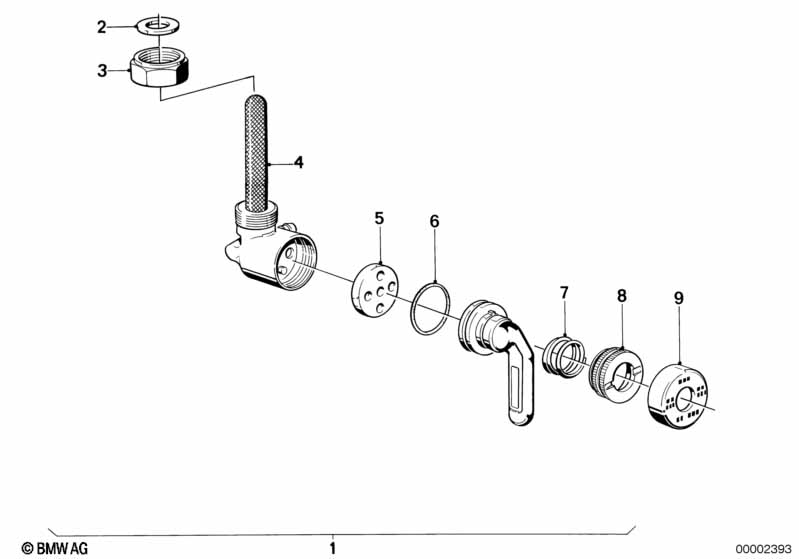

This Yakıt musluğu technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Yakıt musluğu, Sol | 1 | 16122307113 | $51.28 | +ana | Shop at ECS Tuning | ||||
| 02 | Conta | A13.5X18 | 1 | 16121240060 | $0.83 | Shop at ECS Tuning | ||||
| 03 | Başlık somunu | 1 | 16121233363 | $6.92 | Shop at ECS Tuning | |||||
| 04 | Süzgeç | 1 | 16122307112 | $9.44 | Kalmadı | Shop at ECS Tuning | ||||
| 05 | Conta | 1 | 16121238924 | $12.64 | Shop at ECS Tuning | |||||
| 06 | O-Ring | 18X1,8 | 1 | 16121234869 | $5.32 | Kalmadı | Shop at ECS Tuning | |||
| 07 | Baskı yayı | 1 | 16121236390 | $2.62 | Shop at ECS Tuning | |||||
| 08 | Kapak | 1 | 16121237910 | $10.08 | Kalmadı | Shop at ECS Tuning | ||||
| 09 | Kapak | 1 | 16121233367 | $4.13 | Kalmadı | Shop at ECS Tuning |
Not
- +ana= ilave olarak ana masraf (eski parçanın iade edilme ihtimali)
- Kalmadı = parçanın üretimi durdurulmuştur.
