Ön susturucu for BMW 7 Series F02 760Li

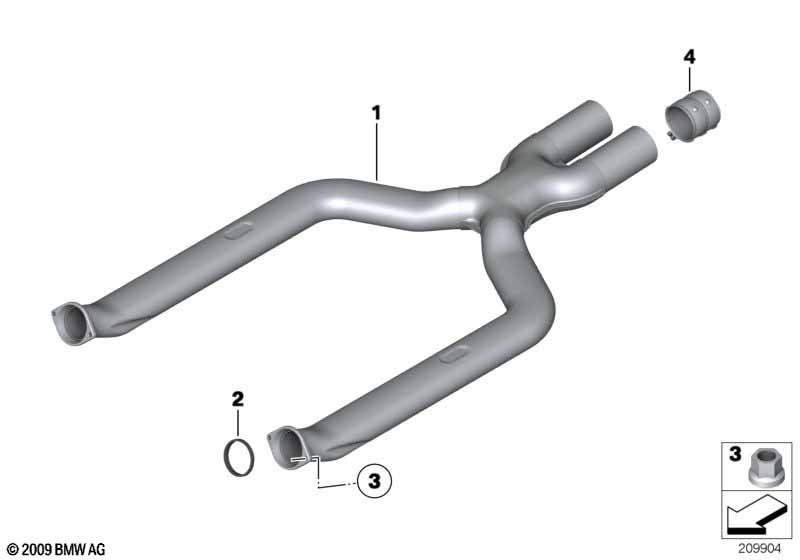

This Ön susturucu technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 760Li. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Çatallaşmış ön boru | 1 | 18307590764 | Shop at ECS Tuning | ||||||
| 02 | Conta | 2 | 18307577959 | $17.00 | Shop at ECS Tuning | |||||
| 03 | Şapkalı somun | M8 | 4 | 18307597650 | Shop at ECS Tuning | |||||
| 04 | Sıkma manşonu | D=80 X 90MM | 2 | 18307560815 | Shop at ECS Tuning |
