Arka egzoz sistemi for BMW 3 Series E46 330xi

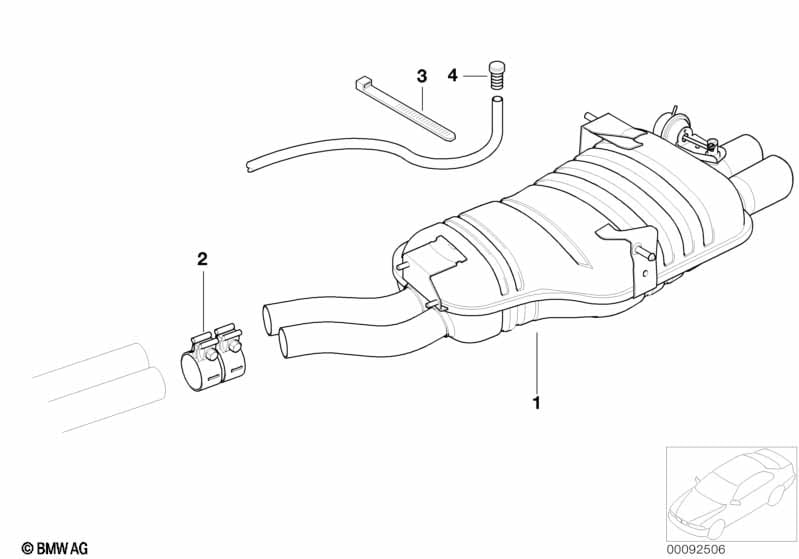

This Arka egzoz sistemi technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spor, Arka susturucu | 1 | 18100026767 | $956.13 | Kalmadı | Shop at ECS Tuning | ||||
| 02 | Sıkma manşonu | D=60 X 70MM | 2 | 18307560777 | $34.61 | Shop at ECS Tuning | ||||
| 03 | Kablo kelepçesi | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 04 | Sızdırmazlık kepi | D=7,0MM | 1 | 11611727176 | $3.39 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xi Arka egzoz sistemi?
- This technical diagram illustrates the Arka egzoz sistemi within the Egzoz sistemi group for the 3 Series E46 330xi. It provides a detailed exploded view of the components, identifying key parts such as the Spor, Arka susturucu (Part #18100026767).
- Which models use the hardware listed in this Arka egzoz sistemi?
- The hardware and components featured in the Arka egzoz sistemi are specific to the 3 Series E46 330xi. These technical specifications ensure that parts like the Spor, Arka susturucu (18100026767) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Arka egzoz sistemi assembly?
- Each item in the Arka egzoz sistemi corresponds to the numbered list below the illustration. For the 3 Series E46 330xi, you can identify the Spor, Arka susturucu by locating its position on the schematic, which then links to the official BMW part number 18100026767 for the Egzoz sistemi section.
