Getrag 242 Muhafaza + Montaj parçaları for BMW 1502-2002tii 2002tii (1971)

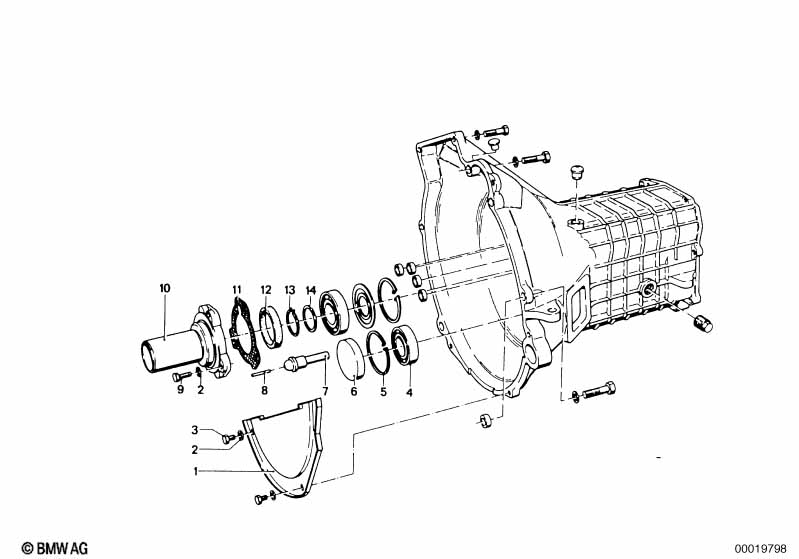

This Getrag 242 Muhafaza + Montaj parçaları technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Koruyucu sac | 1 | 21110670050 | $7.16 | Kalmadı | Shop at ECS Tuning | ||||
| 02 | Rondela | B6 | 5 | 07119933072 | Kalmadı | Shop at ECS Tuning | ||||
| 03 | Altı köşeli cıvata | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Oluklu bilyalı yatak | 6304 C3 | 1 | 09/1963 | 07/1977 | 23121231495 | $27.14 | Shop at ECS Tuning | ||
| 05 | Gergi rondelası | 52X2 | 1 | 07119934723 | $0.97 | Shop at ECS Tuning | ||||
| 06 | Kapak | 1 | 23111606108 | $4.76 | Shop at ECS Tuning | |||||
| 07 | Küresel saplama | 1 | 21511202467 | $77.22 | Kalmadı | Shop at ECS Tuning | ||||
| 08 | Keçe | 1 | 21511200214 | Kalmadı | Shop at ECS Tuning | |||||
| 09 | Altı köşeli cıvata | M6X20-8.8-ZNS | 3 | 07119913016 | $0.60 | Kalmadı | Shop at ECS Tuning | |||
| 10 | Kılavuz kovan | 1 | 09/1963 | 07/1977 | 23121205611 | Kalmadı | Shop at ECS Tuning | |||
| 11 | Asbestsiz conta | 1 | 09/1963 | 07/1977 | 23121222354 | $27.97 | Shop at ECS Tuning | |||
| 12 | Mil keçesi | 30X48X10 | 1 | 23121205552 | Shop at ECS Tuning | |||||
| 13 | Gergi rondelası | A30X2,5 | 1 | 23121630170 | $3.30 | Shop at ECS Tuning | ||||
| 14 | Destek pulu | 30X42X2,5 | X | 23121630150 | $1.97 | Kalmadı | Shop at ECS Tuning | |||
| 14 | Destek pulu | 30X42X2,4 | X | 23121630151 | $3.13 | Shop at ECS Tuning | ||||
| 14 | Destek pulu | 30X42X2,3 | X | 23121630152 | $3.13 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002tii Getrag 242 Muhafaza + Montaj parçaları?
- This technical diagram illustrates the Getrag 242 Muhafaza + Montaj parçaları within the Şanzıman, Mekanik group for the 1502-2002tii 2002tii produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Koruyucu sac (Part #21110670050).
- Which models use the hardware listed in this Getrag 242 Muhafaza + Montaj parçaları?
- The hardware and components featured in the Getrag 242 Muhafaza + Montaj parçaları are specific to the 1502-2002tii 2002tii produced during 1971. These technical specifications ensure that parts like the Koruyucu sac (21110670050) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 242 Muhafaza + Montaj parçaları assembly?
- Each item in the Getrag 242 Muhafaza + Montaj parçaları corresponds to the numbered list below the illustration. For the 1502-2002tii 2002tii, you can identify the Koruyucu sac by locating its position on the schematic, which then links to the official BMW part number 21110670050 for the Şanzıman, Mekanik section.
