Kaydırma borusu for BMW R45-R65LS..78-85 R45

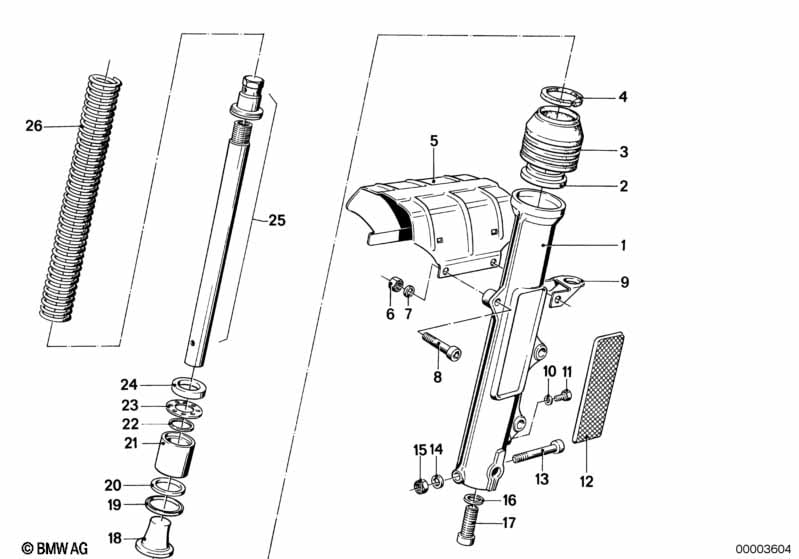

This Kaydırma borusu technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kaydırma borusu, Sol | 1 | 31421237199 | +ana | Shop at ECS Tuning | |||||
| 01 | Kaydırma borusu, Sağ | 1 | 31421237200 | $212.89 | Kalmadı, +ana | Shop at ECS Tuning | ||||
| 02 | Mil keçesi | 36X46X7.3 | 2 | 31421232655 | Shop at ECS Tuning | |||||
| 03 | Manşon | 2 | 31421237205 | $13.03 | Shop at ECS Tuning | |||||
| 04 | Keçe | 2 | 31421237213 | $0.83 | Shop at ECS Tuning | |||||
| 05 | Braket | 1 | 31421236555 | $73.90 | Shop at ECS Tuning | |||||
| 06 | Altı köşeli somun, Kendinden emniyetli | M8-8-ZNNI SI | 4 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 07 | Alt besleme pulu | 8,4 | 4 | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Silindir cıvatası | M8X45-8.8 | 4 | 07119901033 | $1.19 | Shop at ECS Tuning | ||||
| 09 | Hortum tutucusu | 1 | 34321237256 | $18.26 | Shop at ECS Tuning | |||||
| 10 | Conta | A6.5X9.5X1-AL | 2 | 07119963037 | $0.57 | Shop at ECS Tuning | ||||
| 11 | Altı köşeli cıvata | M6X6 | 2 | 07119913405 | Kalmadı | Shop at ECS Tuning | ||||
| 12 | Yan reflektör, sarı ön | 2 | 63141244529 | $8.98 | Shop at ECS Tuning | |||||
| 13 | ISA-cıvata | M8X60 ZNS3 | 2 | 07129904502 | $2.80 | Shop at ECS Tuning | ||||
| 14 | Alt besleme pulu | 8,4X18X2MM | 2 | 07149180923 | Shop at ECS Tuning | |||||
| 15 | Altı köşeli somun | M8-8-ZNS3 | 2 | 07/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 15 | Altı köşeli somun | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 16 | Conta | A12X15,5 AL | 2 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Silindir cıvatası | M12X30-8.8-CD | 2 | 07119919778 | $3.02 | Shop at ECS Tuning | ||||
| 18 | Amortisör borusu yuvası | 2 | 31422301015 | $35.74 | Shop at ECS Tuning | |||||
| 19 | Gergi rondelası | 30X1,2 | 2 | 09/1980 | 07119934645 | $0.36 | Shop at ECS Tuning | |||
| 19 | Gergi rondelası | J30X1.2 | 2 | 09/1980 | 31421242646 | $0.81 | Kalmadı | Shop at ECS Tuning | ||
| 20 | Mesafe pulu | 22X30X0,1 | X | 07119932656 | Kalmadı | Shop at ECS Tuning | ||||
| 20 | Mesafe pulu | 22X30X0.2 | X | 07119932657 | $0.84 | Shop at ECS Tuning | ||||
| 20 | Mesafe pulu | 22X30X0.3 | X | 07119932659 | $0.84 | Shop at ECS Tuning | ||||
| 20 | Mesafe pulu | 22X30X0.5 | X | 07119932660 | $0.84 | Kalmadı | Shop at ECS Tuning | |||
| 21 | Supap gövdesi | 2 | 09/1980 | 31421237212 | $3.21 | Shop at ECS Tuning | ||||
| 21 | Supap gövdesi | 2 | 09/1980 | 31422301885 | $4.09 | Shop at ECS Tuning | ||||
| 22 | Valf diski | 2 | 09/1980 | 31421237284 | $0.53 | Kalmadı | Shop at ECS Tuning | |||
| 22 | Valf diski | 2 | 09/1980 | 31421242645 | $1.36 | Shop at ECS Tuning | ||||
| 23 | Alt besleme pulu | 2 | 31421237214 | $1.36 | Kalmadı | Shop at ECS Tuning | ||||
| 24 | Sınır konum halkası | 2 | 31421237215 | $1.66 | Shop at ECS Tuning | |||||
| 25 | Amortisör | 2 | 31421237209 | $44.38 | Kalmadı | Shop at ECS Tuning | ||||
| 26 | Baskı yayı | 2 | 31421237232 | $87.51 | Kalmadı | Shop at ECS Tuning |
Not
- +ana= ilave olarak ana masraf (eski parçanın iade edilme ihtimali)
- Kalmadı = parçanın üretimi durdurulmuştur.
