İlave donanım seti, Çift diskli fren for BMW R45-R65LS..78-85 R65LS

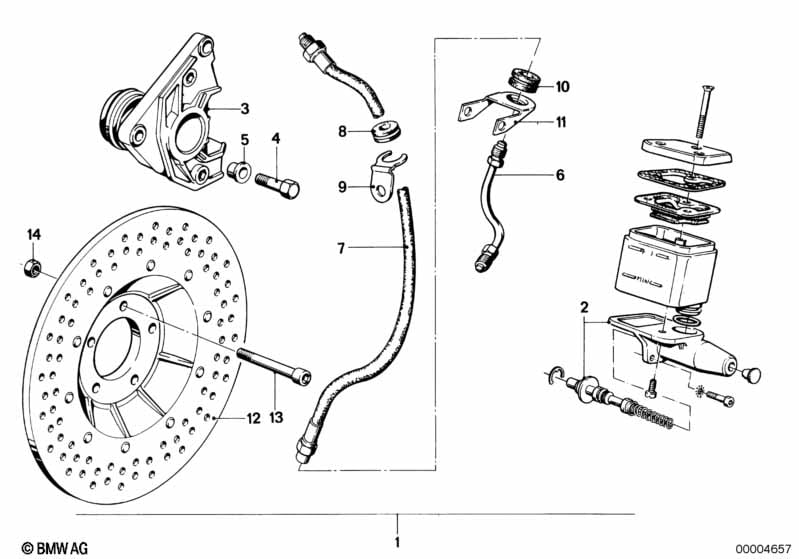

This İlave donanım seti, Çift diskli fren technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Silindir, Pistonlu | D=16MM | 1 | 09/1980 | 09/1981 | 32722302365 | $253.68 | +ana | Shop at ECS Tuning | |
| 03 | Fren kaliperi, Sağ | ATE | 1 | 09/1980 | 09/1981 | 34111237258 | $487.37 | Kalmadı, +ana | Shop at ECS Tuning | |
| 03 | Fren kaliperi, Sağ | BREMBO | 1 | 09/1980 | 09/1981 | 34111238070 | $454.80 | Kalmadı, +ana | Shop at ECS Tuning | |
| 04 | Silindir cıvatası | M10X30-8.8-ZNS | 2 | 09/1980 | 09/1981 | 07119901049 | $1.30 | Shop at ECS Tuning | ||
| 05 | Kovan | 3,5 | 2 | 34111238081 | $8.25 | Shop at ECS Tuning | ||||
| 05 | Kovan | 2,9 | 2 | 34112301736 | $4.60 | Kalmadı | Shop at ECS Tuning | |||
| 05 | Kovan | 1,2 | 2 | 09/1980 | 09/1981 | 34111238079 | $8.25 | Shop at ECS Tuning | ||
| 05 | Kovan | 2,35 | 2 | 09/1980 | 09/1981 | 34111238080 | $8.25 | Shop at ECS Tuning | ||
| 05 | Kovan | 1,7 | 2 | 09/1980 | 09/1981 | 34112301735 | $4.60 | Shop at ECS Tuning | ||
| 06 | Fren borusu, Sağ | 1 | 34321238258 | $8.34 | Shop at ECS Tuning | |||||
| 08 | Kauçuk rondela | 1 | 34321236462 | $2.80 | Shop at ECS Tuning | |||||
| 09 | Hortum tutucusu | 1 | 34321237256 | $18.26 | Shop at ECS Tuning | |||||
| 10 | Kauçuk rondela | 1 | 34321237259 | $1.82 | Shop at ECS Tuning | |||||
| 12 | Fren diski | 1 | 34111236005 | $435.50 | +ana | Shop at ECS Tuning | ||||
| 13 | Silindir cıvatası | M8X70-8.8-ZNS | 5 | 07119901038 | $2.64 | Kalmadı | Shop at ECS Tuning | |||
| 14 | Altı köşeli somun, Kendinden emniyetli | M8-8-ZNS | 5 | 07129964675 | $0.56 | Kalmadı | Shop at ECS Tuning |
Not
- +ana= ilave olarak ana masraf (eski parçanın iade edilme ihtimali)
- Kalmadı = parçanın üretimi durdurulmuştur.
