Fren borusu/Şalter-Fren basıncı for BMW 1502-2002tii 2002tii (1973)

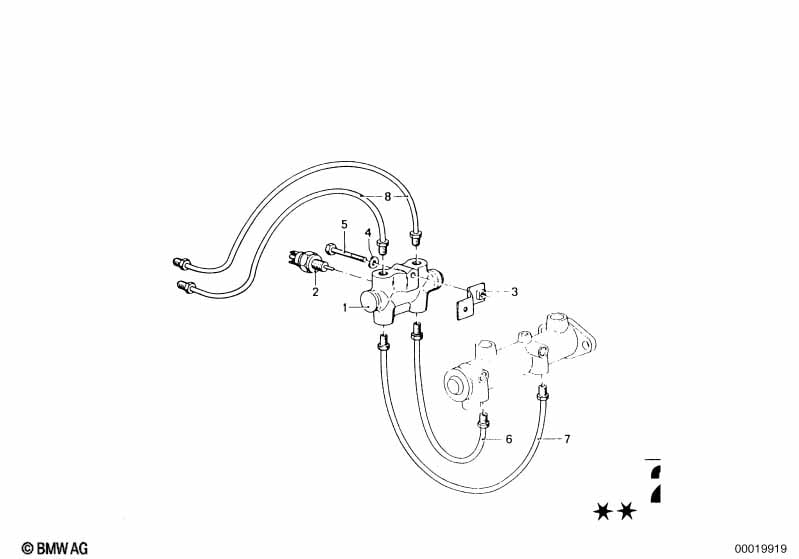

This Fren borusu/Şalter-Fren basıncı technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Şalter, Fren basıncı | 1 | 34321115861 | Kalmadı | Shop at ECS Tuning | |||||
| 02 | Şalter, Fren basıncı | 1 | 61311360940 | $34.67 | Kalmadı | Shop at ECS Tuning | ||||
| 03 | Tutucu | 1 | 34321117049 | Kalmadı | Shop at ECS Tuning | |||||
| 04 | Rondela | B6 | 1 | 07119932072 | $0.09 | Kalmadı | Shop at ECS Tuning | |||
| 05 | Altı köşeli cıvata | M6X30 | 1 | 07119912283 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Boru hattı | M10/M10-214MM | 1 | 34326755551 | $6.25 | Shop at ECS Tuning | ||||
| 07 | Boru hattı | M10/M10-222MM | 1 | 34326755552 | $5.83 | Shop at ECS Tuning | ||||
| 08 | Boru hattı | M10/M10-360MM | 2 | 34326755565 | $7.60 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
