Pedal-Yatak mesnedi for BMW 1502-2002tii 1802 (1971)

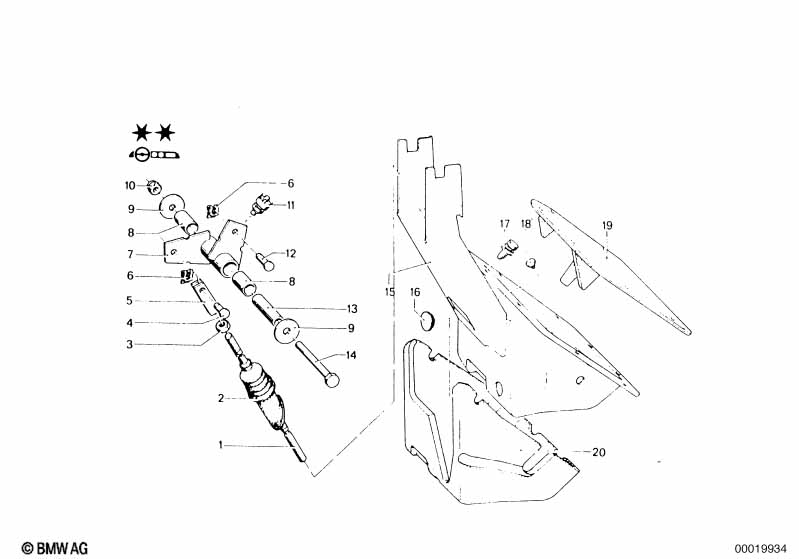

This Pedal-Yatak mesnedi technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pull rod | 1 | 35211100556 | $19.61 | Kalmadı | Shop at ECS Tuning | ||||
| 02 | Manşon | 1 | 35211101077 | $10.79 | Kalmadı | Shop at ECS Tuning | ||||
| 03 | Altı köşeli somun | M10LH | 1 | 07119922115 | Kalmadı | Shop at ECS Tuning | ||||
| 04 | Cıvata | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 05 | Çatal başı | 1 | 35211110924 | $5.44 | Kalmadı | Shop at ECS Tuning | ||||
| 06 | Kıskaç | 2 | 35411104248 | $0.82 | Kalmadı | Shop at ECS Tuning | ||||
| 07 | Orta rot | 1 | 35211101539 | $53.51 | Kalmadı | Shop at ECS Tuning | ||||
| 08 | Boru | 2 | 35211101052 | $7.56 | Shop at ECS Tuning | |||||
| 09 | Alt besleme pulu | 2 | 34331101080 | Kalmadı | Shop at ECS Tuning | |||||
| 10 | Altı köşeli somun, Kendinden emniyetli | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Fren lambası şalteri | 1 | 61311368786 | $38.77 | Shop at ECS Tuning | |||||
| 12 | Cıvata | 1 | 34331101858 | $1.42 | Shop at ECS Tuning | |||||
| 13 | Boru | 1 | 35211101049 | $7.56 | Shop at ECS Tuning | |||||
| 14 | Altı köşeli cıvata | M10X115-10.9PHR | 1 | 07119912715 | Kalmadı | Shop at ECS Tuning | ||||
| ATE T 50 | ||||||||||
| 15 | Yatak mesnedi | HYDRAULISCH | 1 | 03/1966 | 07/1977 | 35111101550 | $367.39 | Kalmadı | Shop at ECS Tuning | |
| 17 | Altı köşeli cıvata, Pullu | M8X20 | 8 | 35111102135 | $0.76 | Kalmadı | Shop at ECS Tuning | |||
| 19 | Sönümleme kaplaması | 1 | 35114440140 | $27.21 | +ana | Shop at ECS Tuning | ||||
| 20 | İzolasyon parçası | 1 | 35111102142 | $43.55 | Kalmadı | Shop at ECS Tuning | ||||
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
- +ana= ilave olarak ana masraf (eski parçanın iade edilme ihtimali)
