Pedal düzeneği, Geri çekme yaylı for BMW MINI Paceman R61 Cooper

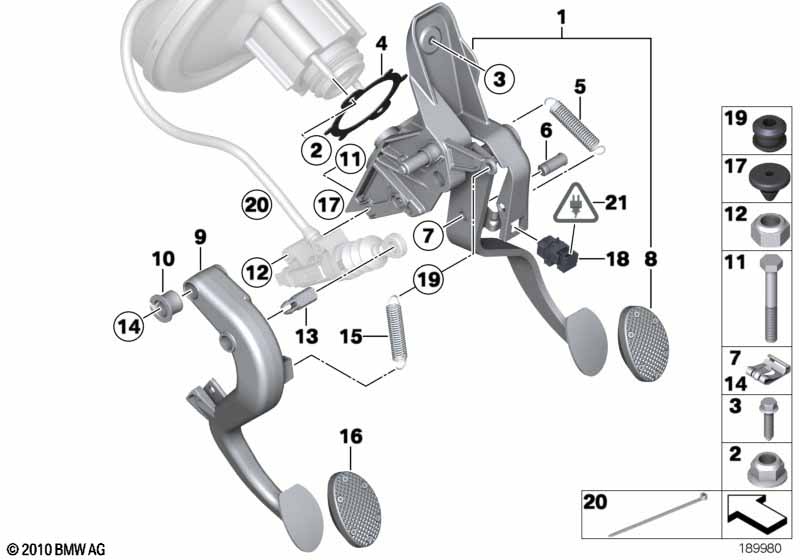

This Pedal düzeneği, Geri çekme yaylı technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pedal y�zeyi olmadan | ||||||||||
| 01 | Pedal düzeneği, Fren pedallı | 1 | 35106795831 | Shop at ECS Tuning | ||||||
| başka müdahaleye izin verilmemiştir | ||||||||||
| 02 | Şapkalı somun, Kendinden emniyetli | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Altı köşeli cıvata | M8X36-8.8-ZNS3 | 1 | 32301094716 | $0.70 | Shop at ECS Tuning | ||||
| 04 | Conta | 1 | 34336770915 | $4.79 | Shop at ECS Tuning | |||||
| 05 | Geri çekme yayı | 1 | 35216772408 | $1.93 | Shop at ECS Tuning | |||||
| 06 | Cıvata | 1 | 34336772409 | $0.85 | Shop at ECS Tuning | |||||
| 07 | Sigorta | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Pedal lastiği | 1 | 35216765620 | $4.07 | Shop at ECS Tuning | |||||
| 09 | Debriyaj pedalı | 1 | 35316772406 | $16.98 | Shop at ECS Tuning | |||||
| 10 | Yatak burcu | 2 | 04/2010 | 35006878303 | Shop at ECS Tuning | |||||
| 11 | Altı köşeli cıvata | M6X45 8.8 ZNS3 | 2 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 12 | Altı köşeli somun, Kendinden emniyetli | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Cıvata, Ana silindir | 1 | 35006878304 | Shop at ECS Tuning | ||||||
| 14 | Sigorta | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Geri çekme yayı | 1 | 35216772408 | $1.93 | Shop at ECS Tuning | |||||
| 16 | Pedal lastiği | 1 | 35216765620 | $4.07 | Shop at ECS Tuning | |||||
| 17 | Tampon, Debriyaj pedalı | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 18 | Fren lambası şalteri | 1 | 61316967601 | $32.07 | Shop at ECS Tuning | |||||
| 19 | Kauçuk rondela | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 20 | Kablo kelepçesi | L=200MM/B=3,6MM | 1 | 01/2008 | 61131367599 | $0.43 | Shop at ECS Tuning | |||
