Gaz kelebeği kumandası/Kumanda teli RHD for BMW 3 Series E36 328i

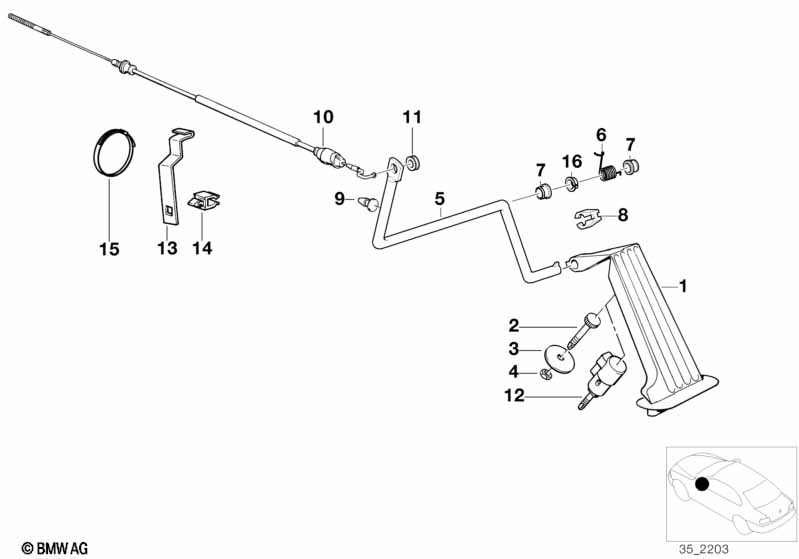

This Gaz kelebeği kumandası/Kumanda teli RHD technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gaz pedalı | 1 | 35411158660 | $26.33 | Shop at ECS Tuning | |||||
| 05 | Mil ayak gaz pedalı | D=12MM | 1 | 35411161393 | Shop at ECS Tuning | |||||
| Montaj | ||||||||||
| 06 | Onarım seti, Yaylar | 1 | 35419068655 | Shop at ECS Tuning | ||||||
| 07 | Yatak burcu | D=12,2MM | 2 | 35411154172 | $0.52 | Shop at ECS Tuning | ||||
| Tutucu Bkz. BTE Direks. kolonu borusu/Montaj parçaları |
||||||||||
| 08 | Sıkıştırma yayı | 1 | 35411155837 | $0.80 | Shop at ECS Tuning | |||||
| 09 | Tampon, Debriyaj pedalı | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 10 | Gaz teli | 1 | 35411164636 | $31.52 | +ana | Shop at ECS Tuning | ||||
| 11 | Kauçuk rondela | D=10MM | 1 | 35411152331 | $1.17 | Shop at ECS Tuning | ||||
| Araçlar: Otomatik şanzıman Eh |
=Evet |
|||||||||
| 12 | Kickdown şalteri | 1 | 35421181103 | $29.92 | Shop at ECS Tuning | |||||
| 15 | Kablo kelepçesi | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 16 | Yatak burcu | 1 | 35411163683 | Shop at ECS Tuning | ||||||
Not
- +ana= ilave olarak ana masraf (eski parçanın iade edilme ihtimali)
