BMW LM M kollu jant 383-17'' for BMW 2 Series F22 218d

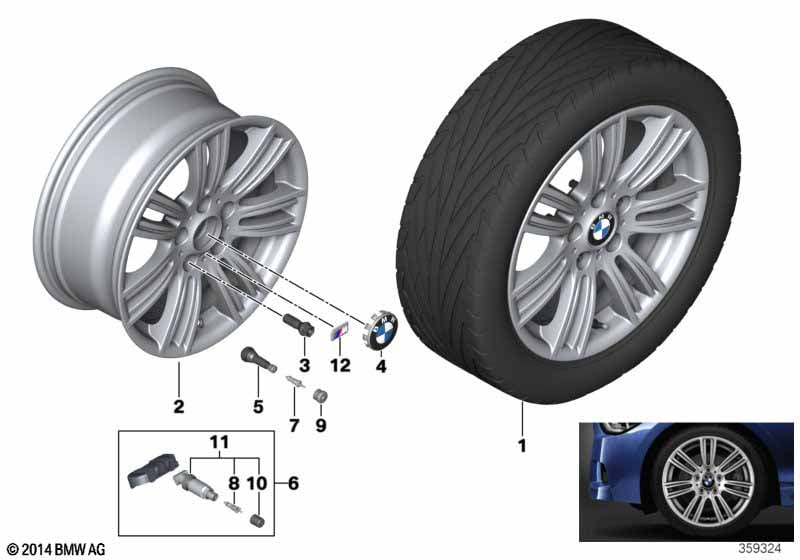

This BMW LM M kollu jant 383-17'' technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 218d. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dikkat: AB akümülatör düzenlemesi nedeniyle RDC sensörleri veya sabit takılı akümülatörlü parçalar için parça tanımı yasal olarak zorunludur! Bu ürünü satın alırken ekli dokümanın çıktısı alınıp müşteriye verilmelidir! Uyarı: Yalnızca AB onayı olan araçlar BE. Seçilen tekerlek/ lastik kombinasyonu şartlara bağlı olarak kaydedilir. Lütfen araçta, tekerlek/lastik kombinasyonunun kaydedildiğine dair Coc kontrolü yapın. Bu durum sağlanmamışsa, gerektiğinde ülkeye özgü ilave bir onay gerekir!! Araçlar: BMW LM jant M yıldız spoke 383 |
S2N3A=Evet |
||||||||
| Araçlar: Spor fren sistemi |
SZP1A=Hayır |
|||||||||
| 02 | Diskli tek.hafif alaş.metal dekor güm.2 | 7,5JX17 ET:43 | 4 | 03/2014 | 36117845850 | Shop at ECS Tuning | ||||
| Araçlar: Spor fren sistemi Sadece arka aks için Farklı ebatlı lastikler |
SZP1A=Hayır |
|||||||||
| 02 | Diskli tek.hafif alaş.metal dekor güm.2 | 8JX17 ET53 | 2 | 03/2014 | 36117845851 | Shop at ECS Tuning | ||||
| 03 | Tekerlek bijonu, Siyah | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Krom kenarlı poyra kapağı | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| Araçlar: Lastik basıncı göstergesi |
S2VBA=Hayır |
|||||||||
| 05 | Lastik valf | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| Araçlar: Lastik basıncı göstergesi |
S2VBA=Evet |
|||||||||
| 06 | Vidalı supaplı tek.elektroniği RDCi | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| Araçlar: Lastik basıncı göstergesi |
S2VBA=Hayır |
|||||||||
| 07 | Valf takımı | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| Araçlar: Lastik basıncı göstergesi |
S2VBA=Evet |
|||||||||
| 08 | RDCi valf takımı | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| Araçlar: Lastik basıncı göstergesi |
S2VBA=Hayır |
|||||||||
| 09 | Valf kapağı | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| Araçlar: Lastik basıncı göstergesi |
S2VBA=Evet |
|||||||||
| 10 | RDCi valf kapağı | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | RDCi vidalı valf onarım seti | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
| 12 | M Amblem | 4 | 03/2014 | 36112228660 | $6.62 | Shop at ECS Tuning | ||||
