Arka kanat-Kişiye özgü seri "Clubsport" for BMW 3 Series E36 323i

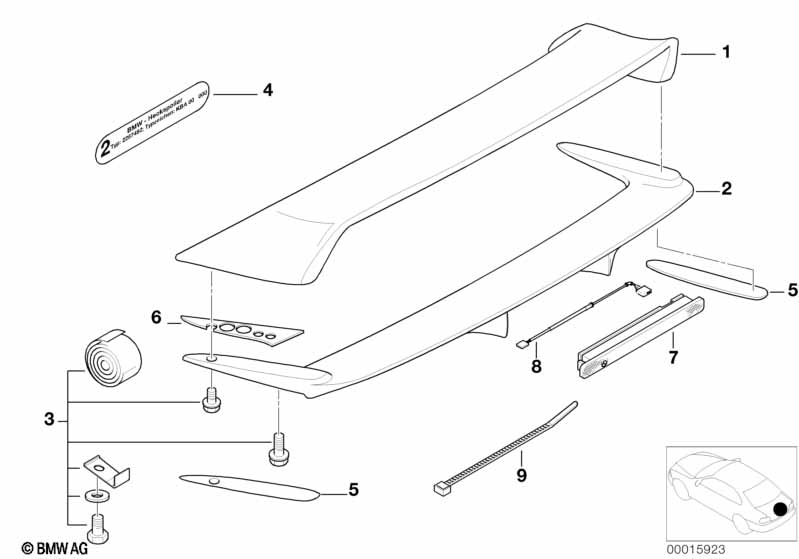

This Arka kanat-Kişiye özgü seri "Clubsport" technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Arka spoyler | 1 | 02/1997 | 12/1997 | 51712264509 | $856.53 | Kalmadı | Shop at ECS Tuning | ||
| 02 | Arka spoyler | 1 | 02/1997 | 12/1997 | 51712494706 | Kalmadı | Shop at ECS Tuning | |||
| 03 | Set, Sabitleme parçaları | 1 | 02/1997 | 12/1997 | 51712489686 | $69.74 | Shop at ECS Tuning | |||
| 04 | Tip etiketi | 1 | 02/1997 | 12/1997 | 51712268559 | Kalmadı | Shop at ECS Tuning | |||
| 05 | Koruyucu folyo, Sol | 1 | 02/1997 | 12/1997 | 51712268555 | Kalmadı | Shop at ECS Tuning | |||
| 05 | Koruyucu folyo, Sağ | 1 | 02/1997 | 12/1997 | 51712268556 | Shop at ECS Tuning | ||||
| 06 | Delik şablonu, Sol | 1 | 02/1997 | 12/1997 | 51712489687 | $13.94 | Kalmadı | Shop at ECS Tuning | ||
| 06 | Delik şablonu, Sağ | 1 | 02/1997 | 12/1997 | 51712489688 | $13.94 | Kalmadı | Shop at ECS Tuning | ||
| 07 | Fren ışığı, Arka spoyler | 1 | 02/1997 | 12/1997 | 63252489862 | $93.33 | Kalmadı | Shop at ECS Tuning | ||
| 08 | Kablo | 1 | 02/1997 | 12/1997 | 61102497081 | $18.67 | Kalmadı | Shop at ECS Tuning | ||
| 09 | Kablo kelepçesi | L=200MM/B=3,6MM | 1 | 02/1997 | 12/1997 | 61131367599 | $0.43 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
