Ön çamurluk for BMW MINI R56 One (2008)

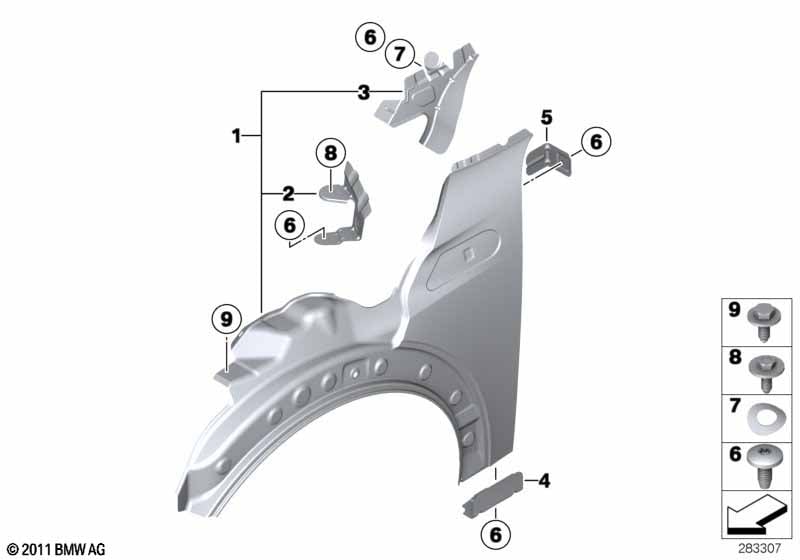

This Ön çamurluk technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Çamurluk, Ön Sağ | 1 | 12/2020 | 41352754726 | $200.50 | Kalmadı | Shop at ECS Tuning | |||
| 01 | Çamurluk, Ön Sağ | 1 | 12/2020 | 41355A55B02 | Shop at ECS Tuning | |||||
| 01 | Çamurluk, Ön Sol | 1 | 12/2020 | 41355A55B01 | Shop at ECS Tuning | |||||
| 02 | Kilitleme sacı, Çamurluk-Sol | 1 | 41352754723 | $11.50 | Shop at ECS Tuning | |||||
| 02 | Kilitleme sacı, Çamurluk-Sağ | 1 | 41352754724 | $11.50 | Shop at ECS Tuning | |||||
| 03 | Kilitleme sacı, Sol | 1 | 41352754719 | $15.68 | Shop at ECS Tuning | |||||
| 03 | Kilitleme sacı, Sağ | 1 | 41352754720 | $15.68 | Shop at ECS Tuning | |||||
| 04 | Tutucu, Çamurluk-Alt | 2 | 41352754655 | $3.68 | Shop at ECS Tuning | |||||
| 05 | Tutucu, Çamurluk-Orta | 2 | 41352754656 | $3.68 | Shop at ECS Tuning | |||||
| 06 | Mercimek başlı vida | M6X14 | X | 07142756541 | $0.29 | Shop at ECS Tuning | ||||
| 07 | Rondela | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Altı köşeli cıvata, Pullu | M6X20 | X | 07147151867 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Altı köşeli cıvata | X | 07146986088 | $0.45 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One Ön çamurluk?
- This technical diagram illustrates the Ön çamurluk within the Gövde sac parçaları group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Çamurluk, Ön Sağ (Part #41352754726).
- Which models use the hardware listed in this Ön çamurluk?
- The hardware and components featured in the Ön çamurluk are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the Çamurluk, Ön Sağ (41352754726) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ön çamurluk assembly?
- Each item in the Ön çamurluk corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the Çamurluk, Ön Sağ by locating its position on the schematic, which then links to the official BMW part number 41352754726 for the Gövde sac parçaları section.
