Torpido gözü for BMW 5 Series E12 535i

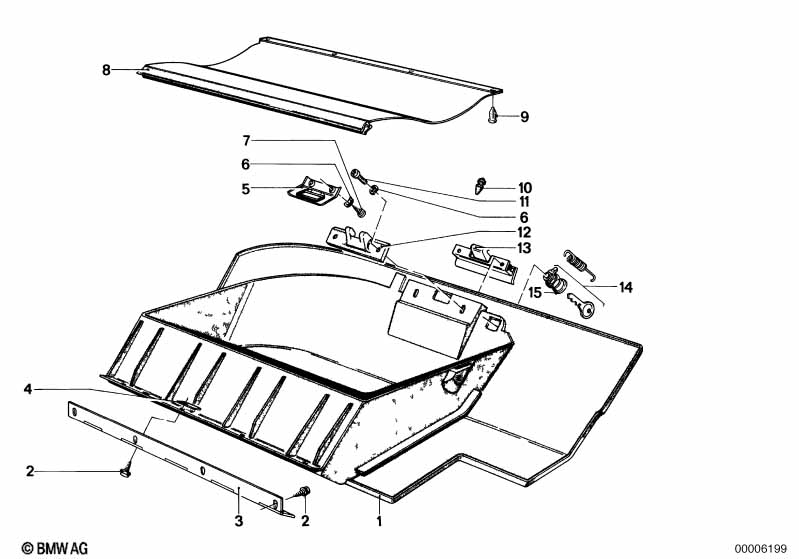

This Torpido gözü technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 535i. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torpido gözü | 1 | 51161817424 | Kalmadı | Shop at ECS Tuning | |||||
| 02 | Altı köşe sac cıvatası | ST4,8X16-C-Z1 | X | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Altı köşe sac cıvatası | ST4,8X16-C-Z1 | X | 07119906265 | Kalmadı | Shop at ECS Tuning | ||||
| 03 | Menteşe | 1 | 51161813261 | $8.82 | Kalmadı | Shop at ECS Tuning | ||||
| 04 | Pres delik somunu | 4 | 51161848715 | $0.18 | Kalmadı | Shop at ECS Tuning | ||||
| 05 | Kilit mandalı | 1 | 51161817655 | $2.43 | Kalmadı | Shop at ECS Tuning | ||||
| 06 | Rondela | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Mercimek başlı sac vida | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | Kalmadı | Shop at ECS Tuning | |||
| 10 | Lastik tampon | 2 | 51161812569 | Kalmadı | Shop at ECS Tuning | |||||
| 10 | Lastik tampon | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 11 | Mercimek başlı vida | M5X16 | 2 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Kilitleme kaması | 1 | 51161843028 | $8.57 | Kalmadı | Shop at ECS Tuning | ||||
| 13 | Kilit | 1 | 51161817651 | $28.65 | Shop at ECS Tuning | |||||
| 14 | Anahtarlı kapak | 1 | 51161849351 | $32.25 | Kalmadı | Shop at ECS Tuning | ||||
| 15 | Kapak, Kodlu | 1 | 51161849353 | Kalmadı | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
