Münferit parçalar, Far-yıkama sistemi for BMW 3 Series E36 M3

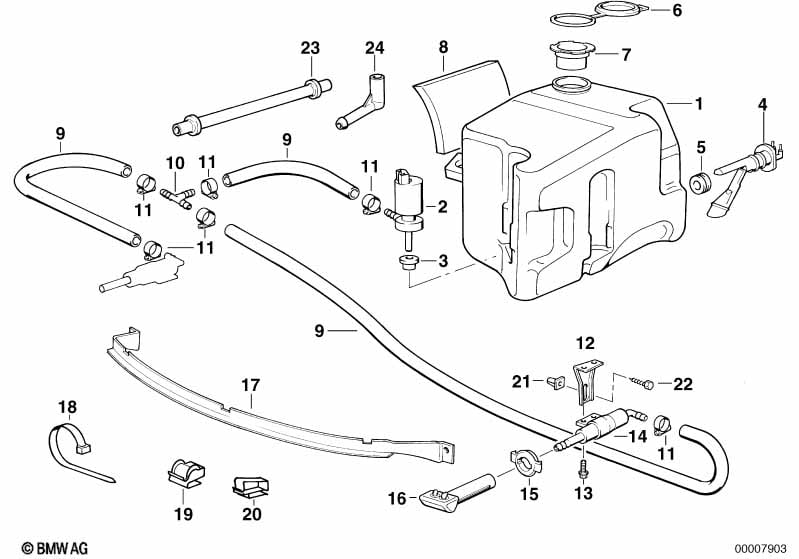

This Münferit parçalar, Far-yıkama sistemi technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sıvı haznesi, Seviye şalterli | 5L | 1 | 10/1994 | 61678366420 | $57.29 | Shop at ECS Tuning | |||
| 02 | Yıkama pompası, Far yıkama sistemi | 1 | 12/1993 | 09/1997 | 61678357839 | $80.42 | Kalmadı | Shop at ECS Tuning | ||
| 02 | Yıkama pompası, Far yıkama sistemi | 1 | 09/1997 | 67128377430 | $69.57 | Shop at ECS Tuning | ||||
| 03 | Conta | 1 | 61671378631 | $0.80 | Shop at ECS Tuning | |||||
| 04 | Seviye şalteri | 1 | 03/1996 | 61311388548 | Shop at ECS Tuning | |||||
| 04 | Seviye şalteri, Yıkama haznesi | 1 | 03/1996 | 61318360459 | $32.46 | Shop at ECS Tuning | ||||
| 05 | Lastik manşon | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 06 | Kapak | 1 | 61667467951 | Shop at ECS Tuning | ||||||
| 07 | Su haznesi süzgeci | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 08 | Altlık | 1 | 16111180163 | $1.08 | Shop at ECS Tuning | |||||
| 09 | Hortum hattı | D= 10MM | X | 61671379530 | $5.85 | Shop at ECS Tuning | ||||
| 10 | Dağıtıcı parça | 1 | 61661393863 | $1.92 | Shop at ECS Tuning | |||||

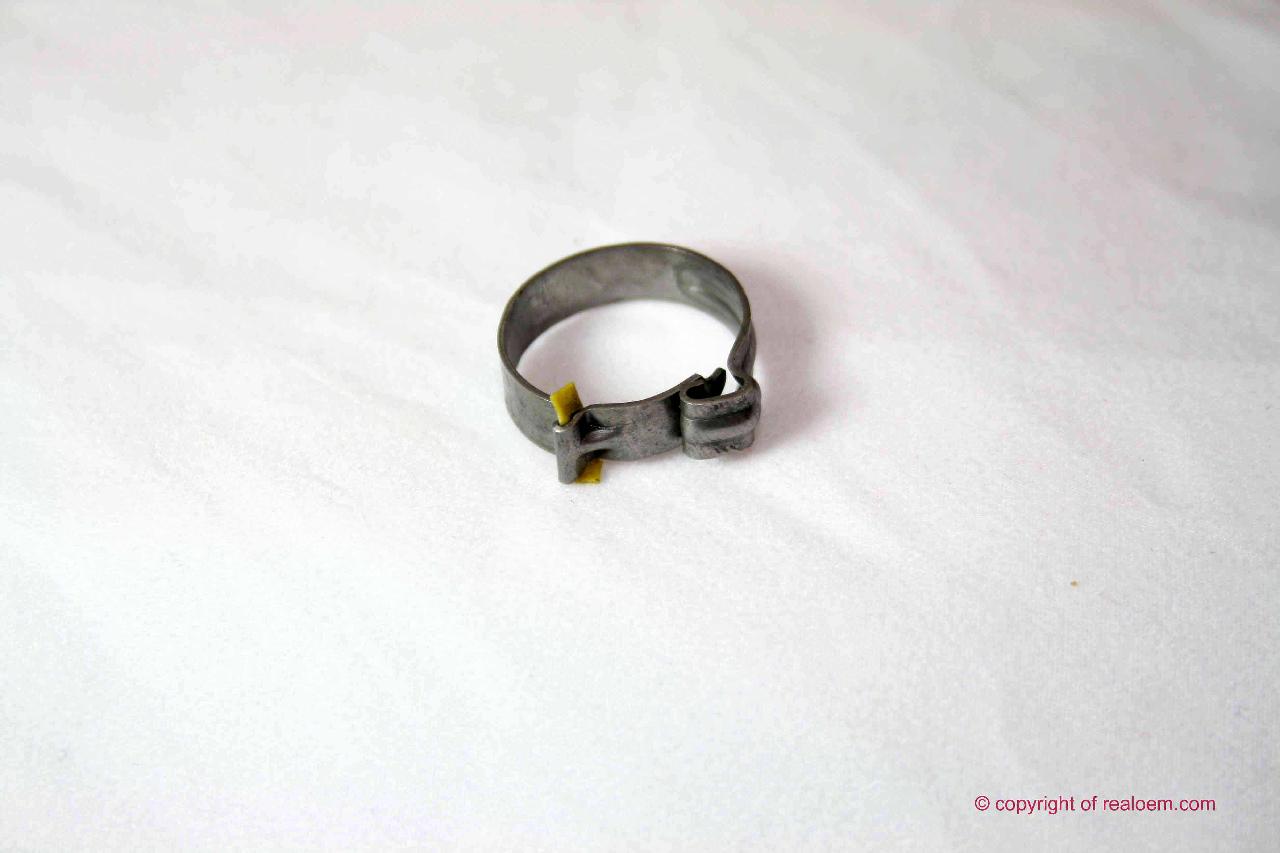

| 11 | Hortum kelepçesi | 15.5-18MM | X | 16131179065 | $0.67 | Shop at ECS Tuning | ||||
| 12 | Tutucu, Sol | 1 | 61671393991 | $14.17 | Shop at ECS Tuning | |||||
| 12 | Tutucu, Sağ | 1 | 61671393992 | $9.63 | Shop at ECS Tuning | |||||
| 13 | Altı köşeli cıvata | M5X 12MM | 4 | 07119905138 | Shop at ECS Tuning | |||||
| 14 | Teleskop, Sol | 1 | 61678360101 | $53.12 | Kalmadı | Shop at ECS Tuning | ||||
| 14 | Teleskop, Sağ | 1 | 61678360102 | $53.12 | Shop at ECS Tuning | |||||
| 15 | Kovan, Sol | 1 | 61678353211 | $4.75 | Shop at ECS Tuning | |||||
| 15 | Kovan, Sağ | 1 | 61678353212 | $4.75 | Shop at ECS Tuning | |||||
| 16 | Püskürtme memesi, Sol | 1 | 61671393993 | $92.21 | Shop at ECS Tuning | |||||
| 16 | Püskürtme memesi, Sağ | 1 | 61671393994 | $92.21 | Kalmadı | Shop at ECS Tuning | ||||
| 17 | Hortum tutucusu | 1 | 61671393838 | $18.93 | Shop at ECS Tuning | |||||
| 18 | Kablo kelepçesi | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 19 | Tutucu | 6 | 61131381436 | $0.47 | Shop at ECS Tuning | |||||
| 20 | Kablo klipsi | 5 | 61131379073 | $0.48 | Kalmadı | Shop at ECS Tuning | ||||
| 21 | Prestol kafes | ST4,2 | 1 | 06/1994 | 07129901744 | Shop at ECS Tuning | ||||
| 22 | Altı köşe sac cıvatası | ST3,9X16-C-Z2 | 1 | 06/1994 | 07119916808 | $0.11 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
