Kapı kablo grupları for BMW 3 Series E46 320d

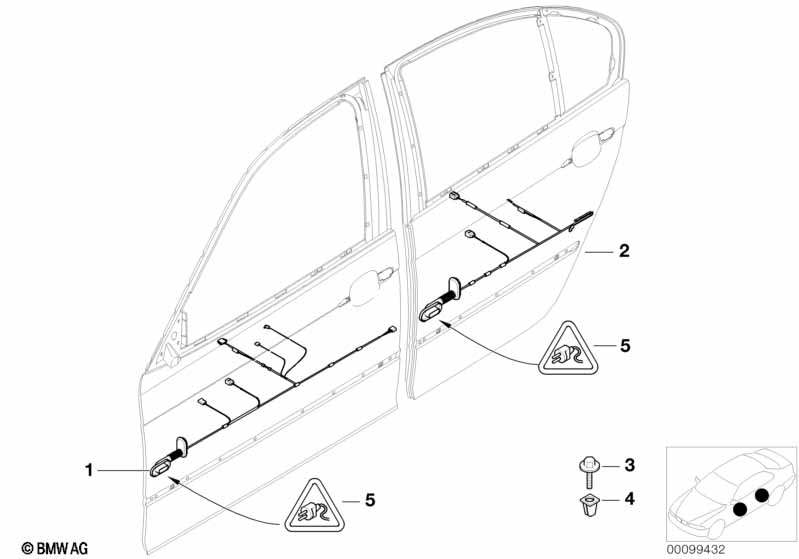

This Kapı kablo grupları technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kablo grubu, Sürücü tarafı | 1 | 03/2001 | 61116902773 | $87.80 | Kalmadı | Shop at ECS Tuning | |||
| 01 | Kablo grubu, Sürücü tarafı | 1 | 03/2001 | 61116913074 | $87.80 | Shop at ECS Tuning | ||||
| 01 | Kablo grubu, Ön yolcu tarafı | 1 | 03/2001 | 61118380889 | $83.65 | Shop at ECS Tuning | ||||
| 01 | Kablo grubu, Ön yolcu tarafı | 1 | 03/2001 | 61116913080 | $75.58 | Shop at ECS Tuning | ||||
| Araçlar: Koltuk ayarlaması, elektrikli, hafızalı |
S459A=Evet |
|||||||||
| 01 | Kablo grubu, Sürücü tarafı | 1 | 09/1999 | 03/2001 | 61126903086 | $87.80 | Kalmadı | Shop at ECS Tuning | ||
| 01 | Kablo grubu, Sürücü tarafı | 1 | 03/2001 | 03/2003 | 61126913076 | $87.80 | Shop at ECS Tuning | |||
| 01 | Kablo grubu, Ön yolcu tarafı | 1 | 09/1999 | 03/2001 | 61126903089 | $83.65 | Kalmadı | Shop at ECS Tuning | ||
| 01 | Kablo grubu, Ön yolcu tarafı | 1 | 03/2001 | 03/2003 | 61126913082 | $71.65 | Shop at ECS Tuning | |||
| 02 | Kablo grubu, Kapı Arka | 2 | 03/2001 | 61128378339 | $83.65 | Kalmadı | Shop at ECS Tuning | |||
| 02 | Kablo grubu, Kapı Arka | 2 | 03/2001 | 61126913085 | $83.65 | Shop at ECS Tuning | ||||
| 03 | Altı köşeli cıvata | 4 | 61136954557 | $0.79 | Shop at ECS Tuning | |||||
| 04 | Kör perçinli somun, Yassı baş | M5 | 4 | 61136954561 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Soket muhafazası | 22 POL. | 4 | 61138372631 | $3.17 | Shop at ECS Tuning | ||||
| sadece aşağıdakiler ile bağlantılı olarak | ||||||||||
| -- | Pin kontağı MQS kablolu | 0,2- 0,5QMM | X | 61130005198 | $1.82 | Shop at ECS Tuning | ||||
| -- | Pin kontağı MQS kablolu | 0,5-0,75 QMM AG | X | 61130070562 | Shop at ECS Tuning | |||||
| -- | Pin kontağı, ELO- Power 5,2 x 0,63 | 1.0-2.5MM² | X | 61136901733 | $1.12 | Shop at ECS Tuning | ||||
| -- | Pin kontağı, ELO- Power 5,2 x 0,63 | 2,5-4,0MM² | X | 61138364845 | $1.12 | Shop at ECS Tuning | ||||
| -- | Kilit | 2 | 61138372627 | $0.70 | Shop at ECS Tuning | |||||
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
