Valvetronic rölesi K6316 for BMW 3 Series E46 316i (2001)

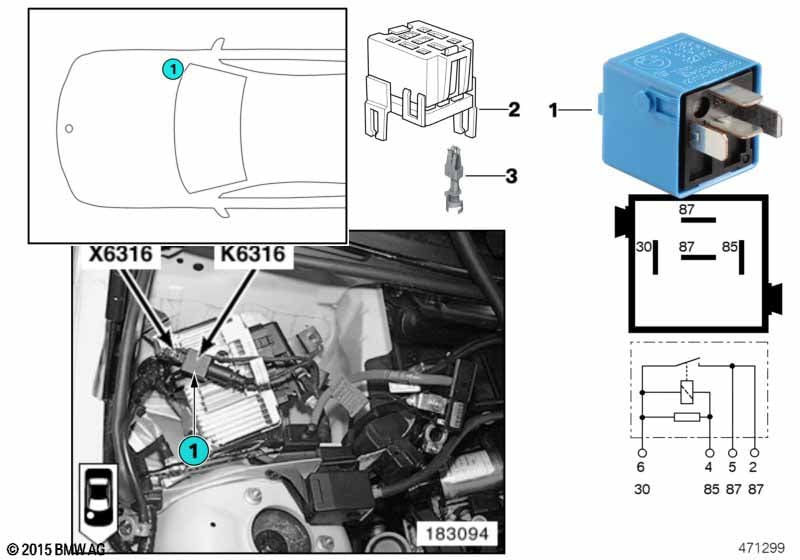

This Valvetronic rölesi K6316 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Röle, Kilitleyici himmelblau | 1 | 61366915327 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay receptacle, black white | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 03 | Çift yay bağlantı yeri kablolu | 6,0 MM² | X | 61130007271 | $6.97 | Shop at ECS Tuning | ||||
| 03 | Çift yay bağlantı yeri kablolu | 1,0 MM² | X | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Çift yay bağlantı yeri kablolu | 2,5 MM² | X | 61130007438 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Çift yay bağlantı yeri | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Çift yay bağlantı yeri | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Çift yay bağlantı yeri | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 316i Valvetronic rölesi K6316?
- This technical diagram illustrates the Valvetronic rölesi K6316 within the Araç elektrik sistemi group for the 3 Series E46 316i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Röle, Kilitleyici himmelblau (Part #61366915327).
- Which models use the hardware listed in this Valvetronic rölesi K6316?
- The hardware and components featured in the Valvetronic rölesi K6316 are specific to the 3 Series E46 316i produced during 2001. These technical specifications ensure that parts like the Röle, Kilitleyici himmelblau (61366915327) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Valvetronic rölesi K6316 assembly?
- Each item in the Valvetronic rölesi K6316 corresponds to the numbered list below the illustration. For the 3 Series E46 316i, you can identify the Röle, Kilitleyici himmelblau by locating its position on the schematic, which then links to the official BMW part number 61366915327 for the Araç elektrik sistemi section.
