İlave donanım seti, Sis farı for BMW 5 Series E12 518

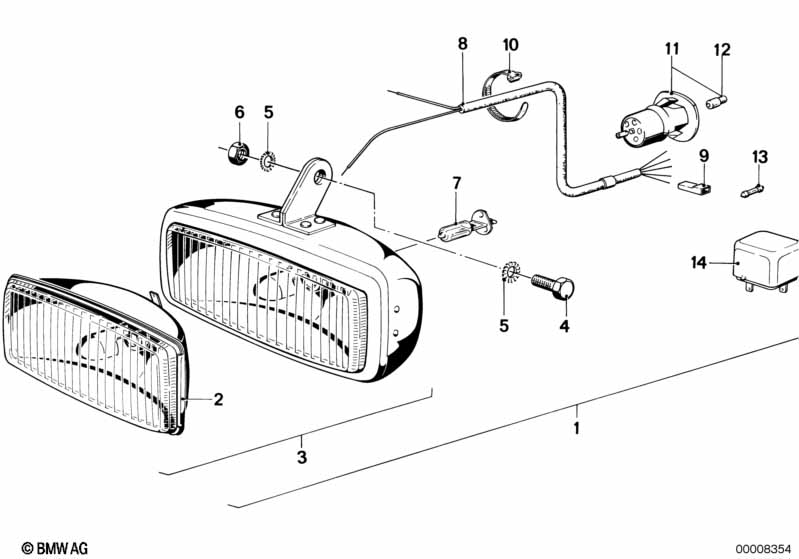

This İlave donanım seti, Sis farı technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | İlave donanım seti, Sis farı-Siyah | 1 | 08/1979 | 63171367023 | Kalmadı | Shop at ECS Tuning | ||||
| 02 | Far takımı | 2 | 08/1979 | 63171360898 | $56.18 | Shop at ECS Tuning | ||||
| 03 | Sis farı | 2 | 08/1979 | 63171367298 | $80.92 | Kalmadı | Shop at ECS Tuning | |||
| 04 | Altı köşeli cıvata | M8X20-ZNNIV SI | 2 | 08/1979 | 07119903039 | Shop at ECS Tuning | ||||
| 05 | Dişli disk | A8,2 | 4 | 08/1979 | 07119936191 | $0.18 | Shop at ECS Tuning | |||
| 06 | Altı köşeli somun | M8-8-ZNS3 | 2 | 08/1979 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | ||
| 06 | Altı köşeli somun | M8-8-ZNNIV SI | 2 | 08/1979 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 07 | Ampul | 12V 55W H1 | X | 08/1979 | 63217160777 | $11.68 | Shop at ECS Tuning | |||
| 08 | Kablo grubu, Sis farı | 1 | 08/1979 | 61121355848 | Kalmadı | Shop at ECS Tuning | ||||
| 09 | Soket muhafazası | 2 | 08/1979 | 61131355290 | $0.45 | Shop at ECS Tuning | ||||
| 10 | Kablo kelepçesi | L=292MM/B=4,8MM | 2 | 08/1979 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 11 | Şalter, Sis farı | NEBEL VORNE | 1 | 08/1979 | 61311363866 | Kalmadı | Shop at ECS Tuning | |||
| 12 | Ampul | 12V 1,2W | X | 08/1979 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 13 | Sigorta | 8A | 1 | 08/1979 | 61138760138 | $1.83 | Shop at ECS Tuning | |||
| 14 | Röle | GELB | 1 | 08/1979 | 61311373585 | $23.75 | Kalmadı | Shop at ECS Tuning | ||
| 14 | Küçük röle | 1 | 08/1979 | 61311373588 | $11.38 | Shop at ECS Tuning |
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 İlave donanım seti, Sis farı?
- This technical diagram illustrates the İlave donanım seti, Sis farı within the Aydınlatma sistemi group for the 5 Series E12 518. It provides a detailed exploded view of the components, identifying key parts such as the İlave donanım seti, Sis farı-Siyah (Part #63171367023).
- Which models use the hardware listed in this İlave donanım seti, Sis farı?
- The hardware and components featured in the İlave donanım seti, Sis farı are specific to the 5 Series E12 518. These technical specifications ensure that parts like the İlave donanım seti, Sis farı-Siyah (63171367023) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the İlave donanım seti, Sis farı assembly?
- Each item in the İlave donanım seti, Sis farı corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the İlave donanım seti, Sis farı-Siyah by locating its position on the schematic, which then links to the official BMW part number 63171367023 for the Aydınlatma sistemi section.
