Uydu-Radyo for BMW 7 Series F02 750Li

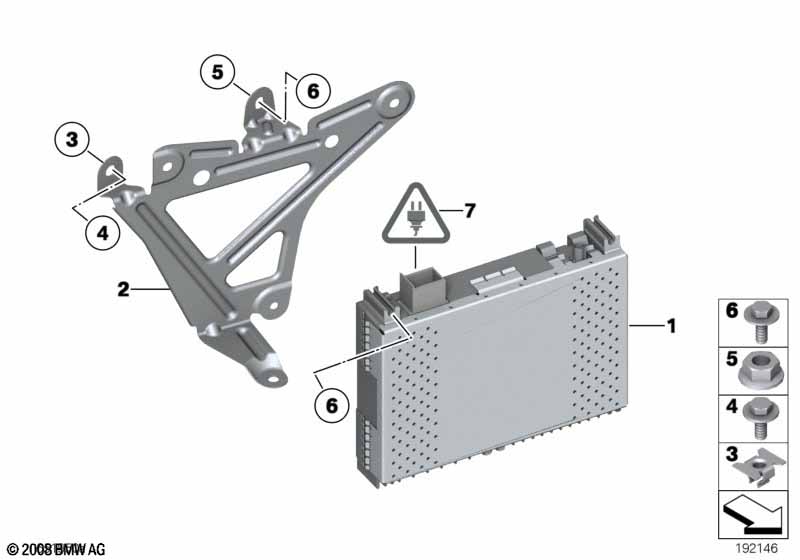

This Uydu-Radyo technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware.
| Hayır. | Açıklama | ilave | Adet | den | -e kadar | Parça Numarası | Fiyat | Not | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Araçlar: BMW Uydu radyosu |
S655A=Evet |
||||||||
| 01 | Uydu-Radyo | 1 | 09/2009 | 65129278266 | Shop at ECS Tuning | |||||
| 01 | Değişim, uydu radyosu | 1 | 09/2009 | 65122232297 | Kalmadı | Shop at ECS Tuning | ||||
| 01 | RP REMAN uydu radyosu | 1 | 09/2009 | 65122293408 | Shop at ECS Tuning | |||||
| 02 | Tutucu SDARS | 1 | 09/2009 | 65159153138 | $7.75 | Kalmadı | Shop at ECS Tuning | |||
| 03 | Prestol kafes | M6 ZNS3 | 2 | 09/2009 | 32411095443 | $1.48 | Shop at ECS Tuning | |||
| 04 | Altı köşeli cıvata, Pullu | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 05 | Altı köşeli somun | M6-8-ZNFE SW | 1 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Altı köşeli cıvata | M5X14 | 3 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
Not
- Kalmadı = parçanın üretimi durdurulmuştur.
