图案侧 内部饰条 Modern Line for BMW 3 Series F30 328iX (2012)
This 图案侧 内部饰条 Modern Line technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.

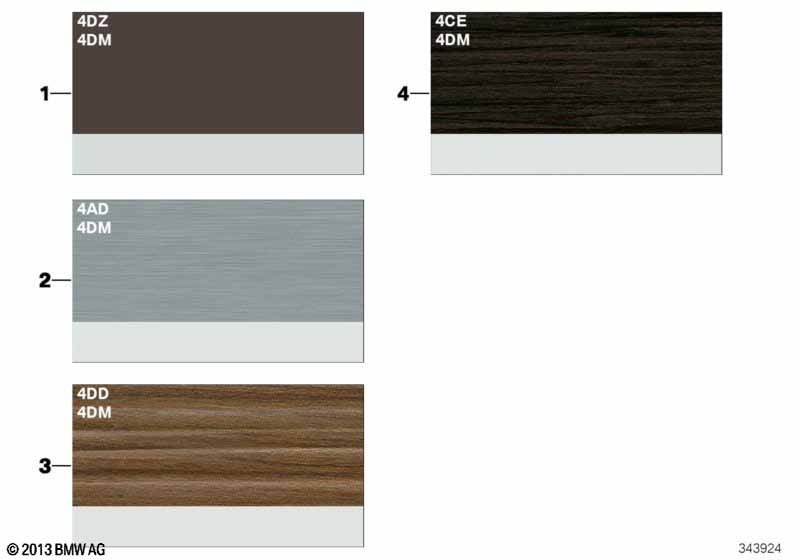

| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用于车辆及 精致饰条 珠光 镀铬 或者 Interieurleisten Pearl dunkel |
S4DMA=是 S4DZA=是 |
|||||||||
| 01 | 本车型所使用的颜色名称： | X | 09/2013 | 51138888888 | Shop at ECS Tuning | |||||
| = Pearl 深色 | ||||||||||
| 用于车辆及 内部饰条 铝 纵向精细打磨 或者 精致饰条 珠光 镀铬 |
S4ADA=是 S4DMA=是 |
|||||||||
| 02 | 本车型所使用的颜色名称： | X | 09/2013 | 51138888888 | Shop at ECS Tuning | |||||
| = 铝合金 纵向打磨 精细 = 装饰条 珠光 镀铬 |
||||||||||
| 用于车辆及 上等木材规格 Fineline Pur 或者 精致饰条 珠光 镀铬 |
S4DDA=是 S4DMA=是 |
|||||||||
| 03 | 本车型所使用的颜色名称： | X | 09/2013 | 51138888888 | Shop at ECS Tuning | |||||
| = Edelholzausführung Fineline Pur = 装饰条 珠光 镀铬 |
||||||||||
| 用于车辆及 上等木材规格 精细纹理 无烟煤色 或者 精致饰条 珠光 镀铬 |
S4CEA=是 S4DMA=是 |
|||||||||
| 04 | 本车型所使用的颜色名称： | X | 09/2013 | 51138888888 | Shop at ECS Tuning | |||||
| = Edelholzausführung Fineline Anthrazit = 装饰条 珠光 镀铬 |
||||||||||
