加装 M 空气动力套件 for BMW 5 Series E60 530i (2007)

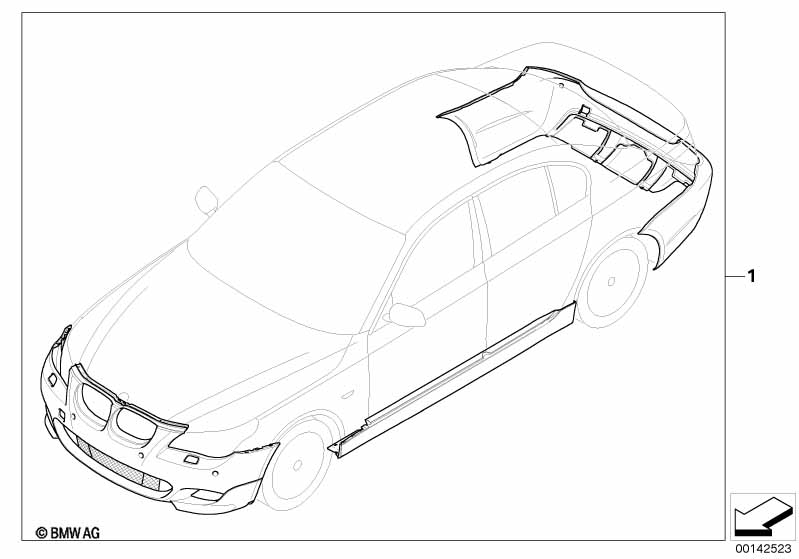

This 加装 M 空气动力套件 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 为了调校前雾灯 一并订购： 2x 61 13 8 364 498 插头套壳 2 芯 灰色 4x 61 13 0 007 272 板弹簧触头 微计时器及电缆 |
|||||||||
| 01 | 加装套件 M 空气动力套件 已上底漆 | 1 | 03/2007 | 51710396683 | $1718.00 | 已经终止 | Shop at ECS Tuning | |||
| 订货时给出颜色码 | ||||||||||
| 01 | 加装套件 M 空气动力套件 已上漆 | CODE - UNI/MET. | 1 | 03/2007 | 51710396831 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 泊车距离报警系统 (PDC) |
S508A=是 |
|||||||||
| 01 | 加装套件 M 空气动力套件 已上底漆 | PDC | 1 | 03/2007 | 51710396684 | $1718.00 | 已经终止 | Shop at ECS Tuning | ||
| 用于车辆及 泊车距离报警系统 (PDC) 订货时给出颜色码 |
S508A=是 |
|||||||||
| 01 | 加装套件 M 空气动力套件 已上漆 | CODE - UNI/MET. | 1 | 03/2007 | 51710396832 | 已经终止 | Shop at ECS Tuning | |||
备注
- 已经终止 = 这个零件已经不再生产.
