加装套件 M 后部空气导流板 等级 2 for BMW 3 Series E36 323i (1995)

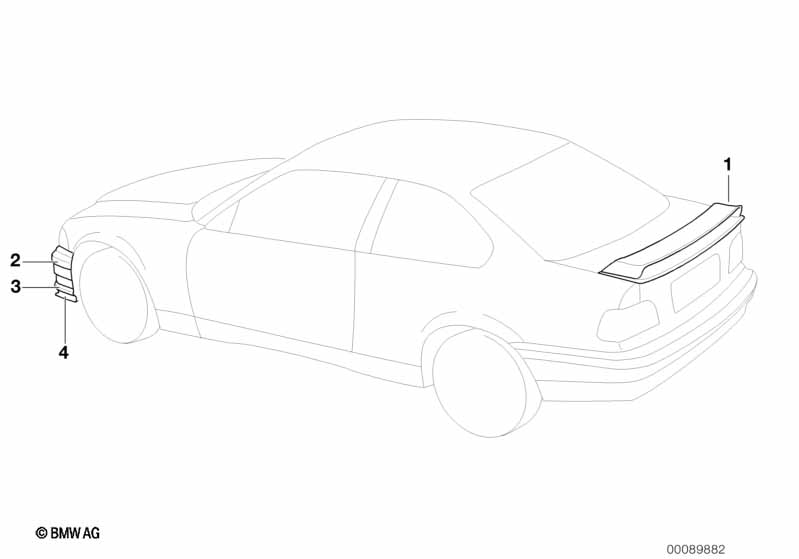

This 加装套件 M 后部空气导流板 等级 2 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 注意： 安装说明 (EBA) 未包括在 加装套件中。 EBA 可当天从 售后服务辅助端口 (ASAP) 中打印并交给客户。 |
|||||||||
| 用于车辆及 第 3 制动信号灯 |
=否 |
|||||||||
| 01 | 加装套件 M 后部空气导流板 已上底漆 | CLASS II | 1 | 51712268552 | 已经终止, ABE 9789408 | Shop at ECS Tuning | ||||
| 仅连接 | ||||||||||
| 02 | 加装套件 M 空气导流板 已上底漆 | 1 | 82119403142 | $504.00 | 已经终止, ABE 9789407 | Shop at ECS Tuning | ||||
| 03 | 空气导流板 | M TECHNIC | 1 | 51112251767 | $73.00 | Shop at ECS Tuning | ||||
| 04 | 下部分 左 | M TECHNIC | 1 | 51112264029 | $173.85 | Shop at ECS Tuning | ||||
| 04 | 下部分 右 | M TECHNIC | 1 | 51112264030 | $173.85 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
- ABE = Allgemeine Betriebserlaubnis (普通操作许可证)
