空气动力套件 for BMW 3 Series E46 318i (2001)

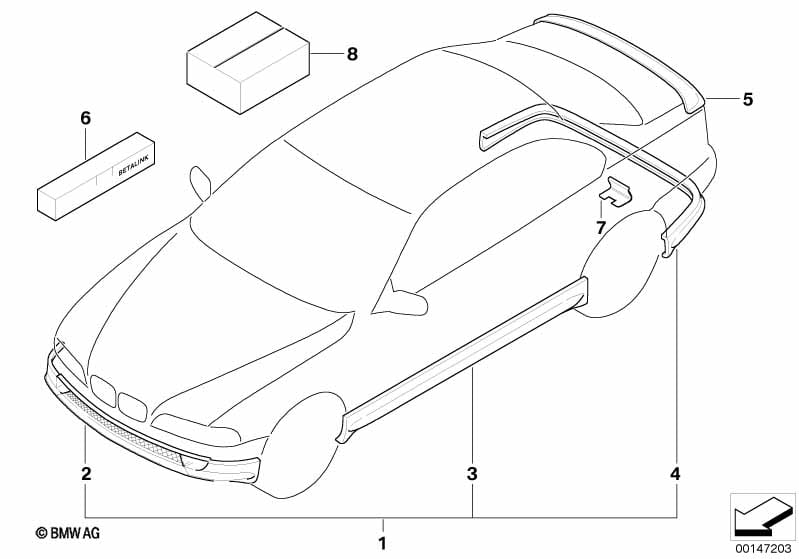

This 空气动力套件 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 注意：安装说明 (EBA) 未在 加装套件中。应通过电子 零件目录 (ETK) 打印输出当日最新的安装说明 并一同交给 客户。未在安装说明中 列出的部件 将按照 ISTA/AIR 安装。 |
|||||||||
| 01 | 空气动力套件 | 1 | 09/2001 | 82619410903 | $457.95 | 已经终止 | Shop at ECS Tuning | |||
| 仅连接 | ||||||||||
| -- | 粘结剂组件 单组分 | 80 ML | 1 | 09/2001 | 83195A326D0 | 已经终止 | Shop at ECS Tuning | |||
| 仅连接排气系统饰件 适用于加拿大：代替粘结剂 5A326D0 零件号码 2289286 使用。 事先用清理剂 0417324 清洁并以零件号码 2446515 涂底漆。 |
||||||||||
| 用于车辆及 国家规格 中国 |
L8AAA=否 |
|||||||||
| 02 | 空气导流板 | 1 | 09/2001 | 82629410896 | $338.95 | 已经终止, ABE 9415949 | Shop at ECS Tuning | |||
| 仅连接 | ||||||||||
| -- | 粘结剂组件 单组分 | 80 ML | 1 | 09/2001 | 83195A326D0 | 已经终止 | Shop at ECS Tuning | |||
| 适用于加拿大：代替粘结剂 5A326D0 零件号码 2289286 使用。 事先用清理剂 0417324 清洁并以零件号码 2446515 涂底漆。 |
||||||||||
| 03 | 加装套件 车门槛饰条 | 1 | 09/2001 | 82659410897 | $401.95 | 已经终止, ABE 9415950 | Shop at ECS Tuning | |||
| 04 | 车尾挡板 | 1 | 09/2001 | 82649410899 | $299.95 | 已经终止, ABE 9415951 | Shop at ECS Tuning | |||
| 仅连接 | ||||||||||
| -- | 粘结剂组件 单组分 | 80 ML | 1 | 09/2001 | 83195A326D0 | 已经终止 | Shop at ECS Tuning | |||
| 仅连接排气系统饰件 适用于加拿大：代替粘结剂 5A326D0 零件号码 2289286 使用。 事先用清理剂 0417324 清洁并以零件号码 2446515 涂底漆。 |
||||||||||
| 用于车辆及 国家规格 中国 |
L8AAA=否 |
|||||||||
| 05 | 后部空气导流板 | 1 | 82639410900 | $320.95 | 已经终止, ABE 9415952 | Shop at ECS Tuning | ||||
| 06 | 粘结剂组件 单组分 | 80 ML | 1 | 09/2001 | 83195A326D0 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 盖板 | HECKSCHÜRZE AHK | 1 | 09/2001 | 82649416905 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 国家规格 中国 备件范围 用于后部空气导流板 9 410 900 |
L8AAA=否 |
|||||||||
| 08 | 后部空气导流板固定组件 | 1 | 51710154308 | $23.42 | 已经终止 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
- ABE = Allgemeine Betriebserlaubnis (普通操作许可证)
