加装套件 挂车挂钩 可拆卸 for BMW 5 Series E60 530i (2007)

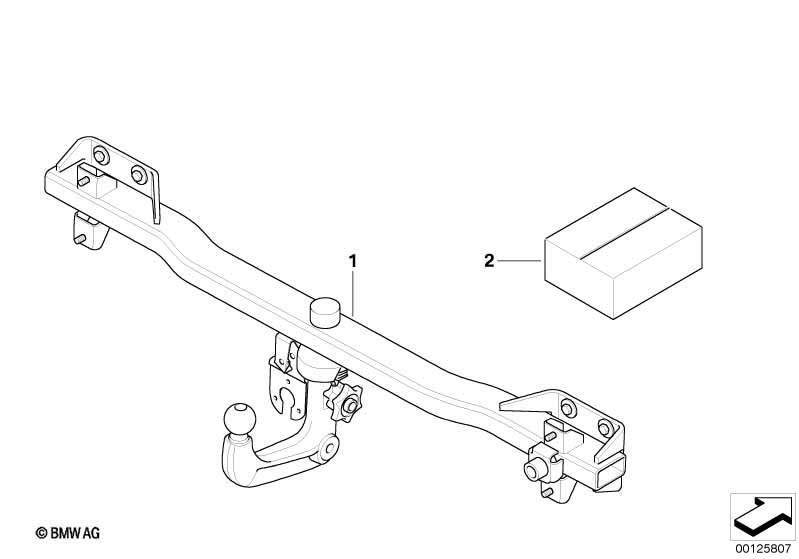

This 加装套件 挂车挂钩 可拆卸 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | --------------------------- 更换 "风扇罩和风扇" 有时可能是必要的。 如果在总成分组 17 图板 中将 "风扇罩和风扇" 规定为挂车挂钩特殊装备， 则这个零件号码必须 一同订购和安装。 如果没有零件号码 规定为挂车挂钩特殊装备， 则 "风扇罩和风扇" 不必更换。 注意： 安装说明 (EBA) 未包含在 加装套件中。 应通过 电子零件目录 (ETK) 打印输出当日最新的安装说明，一同交给客户 。 |
|||||||||
| 用于车辆及 Sequential manual transmission (SMG) |
S206A=否 |
|||||||||
| 01 | 可拆卸挂车挂钩 | 1 | 71606782128 | +core | Shop at ECS Tuning | |||||
| 用于车辆及 Sequential manual transmission (SMG) 和 应急备用轮胎 |
S206A=否 S300A=否 |
|||||||||
| 01 | 可拆卸挂车挂钩 | 1 | 71606782128 | +core | Shop at ECS Tuning | |||||
| 仅连接 | ||||||||||
| -- | 存物盒 球头 | 1 | 71606760993 | $48.61 | 已经终止 | Shop at ECS Tuning | ||||
| -- | 翼形螺帽 | M8 | 1 | 71106781144 | $0.58 | Shop at ECS Tuning | ||||
| 用于车辆及 Sequential manual transmission (SMG) 和 应急备用轮胎 和 热带国家型号 |
S206A=否 S300A=否 S823A=否 |
|||||||||
| 01 | 可拆卸挂车挂钩 | 1 | 71606782128 | +core | Shop at ECS Tuning | |||||
| 仅连接 | ||||||||||
| -- | 存物盒 球头 | 1 | 71606760993 | $48.61 | 已经终止 | Shop at ECS Tuning | ||||
| -- | 翼形螺帽 | M8 | 1 | 71106781144 | $0.58 | Shop at ECS Tuning | ||||
| 用于车辆及 Sequential manual transmission (SMG) |
S206A=否 |
|||||||||
| 02 | 加装套件 电动标准件 | 1 | 09/2006 | 71602155440 | Shop at ECS Tuning | |||||
| 用于车辆及 Sequential manual transmission (SMG) 和 热带国家型号 |
S206A=否 S823A=否 |
|||||||||
| 02 | 加装套件 电动标准件 | 1 | 09/2006 | 71602155440 | Shop at ECS Tuning | |||||
备注
- +core = plus core charge (possibility of a return of the old part)
- 已经终止 = 这个零件已经不再生产.
