防盗装置 for BMW 3 Series E36 320i (1994)

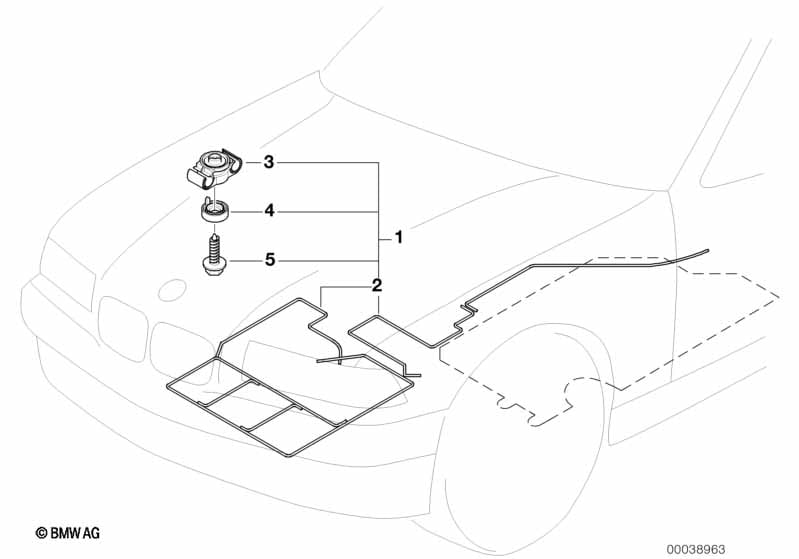

This 防盗装置 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 注意： 安装说明 (EBA) 未包括在 加装套件中。 EBA 可当天从 售后服务辅助端口 (ASAP) 中打印并交给客户。 |
|||||||||
| 01 | 防盗装置 | DRAHT D1+I+H1 | 1 | 82109415997 | 已经终止, +core | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
