冷却系统水导向软管 for BMW 7 Series E23 728i (1982)

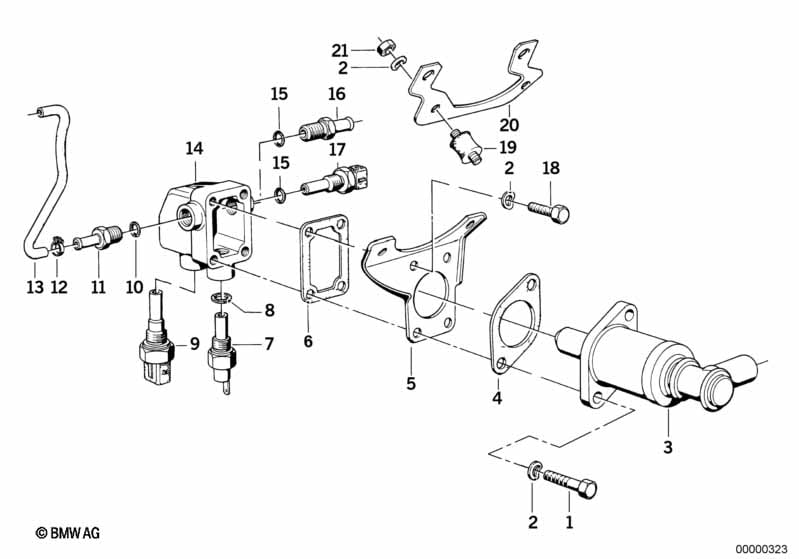

This 冷却系统水导向软管 technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 六角螺栓 | M6X22-8.8-ZNS3 | 2 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 02 | 弹簧垫片 黑色 | B6-ZN | 8 | 05/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 02 | 平垫圈 | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 02 | 弹簧垫片 | B6-ZNS3 | 8 | 07119904496 | $1.78 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 国家规格 瑞典 |
V010A=是 |
|||||||||
| 03 | 辅助气阀 | 1 | 09/1981 | 11611263200 | $176.54 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 支架 | 1 | 09/1981 | 11531262191 | 已经终止 | Shop at ECS Tuning | ||||
| 用于车辆及 国家规格 澳大利亚 |
L810A=是 |
|||||||||
| 06 | 密封件 不含石棉 | 1 | 09/1981 | 11531730233 | $1.83 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 国家规格 瑞典 |
V010A=是 |
|||||||||
| 07 | 温度开关 | 1 | 09/1981 | 12631279716 | 已经终止 | Shop at ECS Tuning | ||||
| 08 | 密封环 | A14X18-AL | 1 | 09/1981 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 12 | 软管夹圈 | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 13 | 软管 | 1 | 11531266475 | $10.92 | Shop at ECS Tuning | |||||
| 14 | 壳体 | 1 | 09/1981 | 11531277685 | $55.33 | 已经终止 | Shop at ECS Tuning | |||
| 16 | 螺纹管接头 | M12 | 1 | 11121740396 | $6.85 | Shop at ECS Tuning | ||||
| 17 | 冷却液温度传感器 | 20CEL 2500 OHM | 1 | 13621357414 | $51.43 | 已经终止 | Shop at ECS Tuning | |||
| 18 | 六角螺栓 | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 用于车辆及 国家规格 瑞典 |
V010A=是 |
|||||||||
| 19 | 扭振减震器 | 2 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 20 | 支架 | 1 | 11531263113 | $4.63 | 已经终止 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
