阀门控制 凸轮轴/润滑 for BMW 3 Series E36 318i (1992)

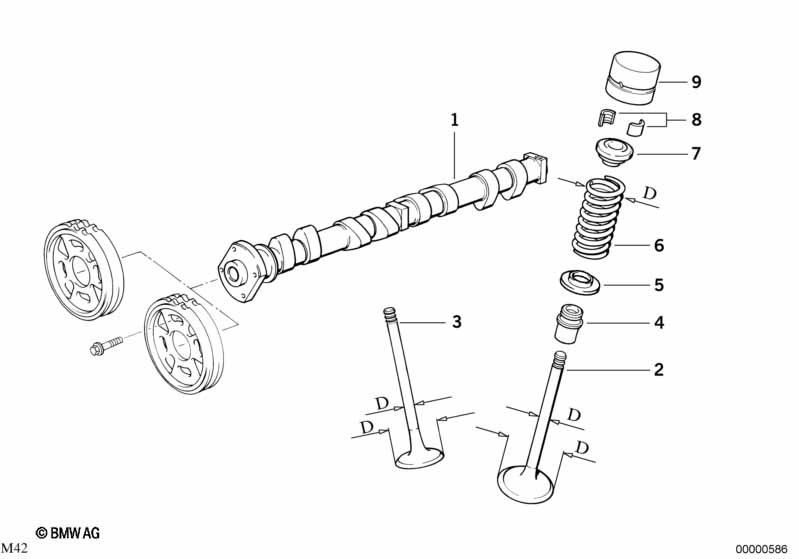

This 阀门控制 凸轮轴/润滑 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 排气凸轮轴 | 1 | 11311727649 | $765.43 | Shop at ECS Tuning | |||||
| 01 | 进气凸轮轴 | 1 | 11311734118 | $715.29 | Shop at ECS Tuning | |||||
| 02 | 进气门 | 33,0/5,94MM | 8 | 11341739822 | Shop at ECS Tuning | |||||
| 阀盘厚度：+0.4mm | ||||||||||
| 02 | 进气门 气门杆加工余量 +0.2mm | 33,0/6,15MM | 8 | 11341739838 | $114.53 | +core | Shop at ECS Tuning | |||
| 阀盘厚度：+0.2mm | ||||||||||
| 02 | 进气门 气门杆加工余量 +0.1mm | 33,0/6,04MM | 8 | 11347505247 | $44.04 | Shop at ECS Tuning | ||||
| 03 | 排气门 | 30,5/5,94MM | 8 | 11341739823 | Shop at ECS Tuning | |||||
| 阀盘厚度：+0.4mm | ||||||||||
| 03 | 排气门 气门杆加工余量 +0.2mm | 30,5/6,14 | 8 | 11341739839 | $156.19 | +core | Shop at ECS Tuning | |||
| 阀盘厚度：+0.2mm | ||||||||||
| 03 | 排气门 气门杆加工余量 +0.1mm | 30,5/6,04MM | 8 | 11341739833 | $156.19 | +core | Shop at ECS Tuning | |||
| 04 | 修理套件 气门杆密封件 | 2 | 11349065438 | $35.29 | Shop at ECS Tuning | |||||
| 05 | 弹簧座 下部 | X | 11341735254 | $3.77 | Shop at ECS Tuning | |||||
| 06 | 气门弹簧 | X | 11341739472 | $7.88 | Shop at ECS Tuning | |||||
| 07 | 弹簧座 上部 | X | 11341724991 | $3.77 | Shop at ECS Tuning | |||||
| 08 | 阀锥件 | D=6 | X | 11341461405 | $1.34 | Shop at ECS Tuning | ||||
| 09 | 挺柱 液压的 | X | 11321739299 | $32.50 | Shop at ECS Tuning | |||||
备注
- +core = plus core charge (possibility of a return of the old part)
