气缸盖罩 for BMW 3 Series E36 318i

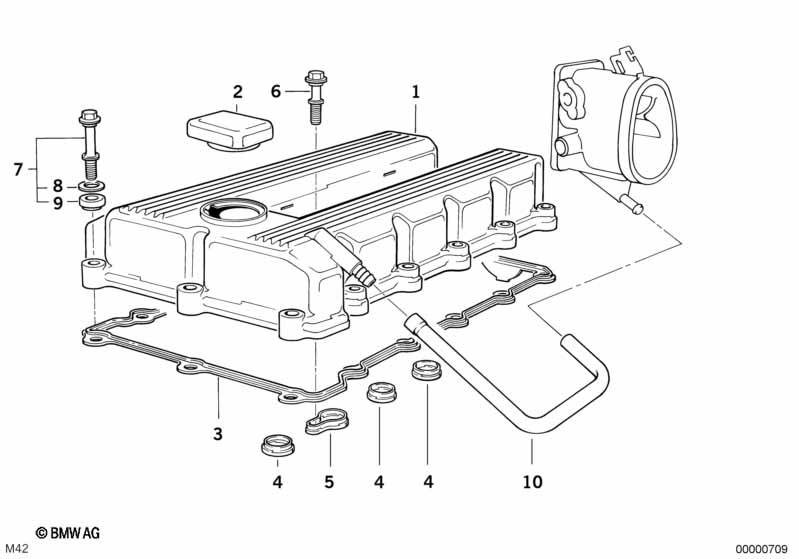

This 气缸盖罩 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 气缸盖罩 | 1 | 07/1992 | 09/1993 | 11121739793 | $571.14 | +core | Shop at ECS Tuning | ||
| 02 | 密封盖 机油加注口盖 | 1 | 09/1993 | 11121743294 | $7.49 | Shop at ECS Tuning | ||||
| 02 | 密封盖 机油加注口盖 | 1 | 09/1993 | 11127509328 | $7.78 | Shop at ECS Tuning | ||||
| 03 | 成型密封件 | 1 | 09/1993 | 11121721876 | $22.04 | Shop at ECS Tuning | ||||
| 04 | 成型密封件 | 3 | 09/1993 | 11121721476 | $1.79 | Shop at ECS Tuning | ||||
| 05 | 成型密封件 | 1 | 09/1993 | 11121721475 | $2.13 | Shop at ECS Tuning | ||||
| 06 | 带肩螺钉 | M6X27,5 | 2 | 09/1993 | 11121721883 | $2.67 | Shop at ECS Tuning | |||
| 07 | 带肩螺钉 | M6X42,5 | X | 09/1993 | 11127568809 | $3.17 | Shop at ECS Tuning | |||
| 08 | 平垫圈 | 10-200 HV-ZNNIV | X | 09/1993 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 09 | 橡胶密封件 | X | 09/1993 | 11121721879 | $1.20 | Shop at ECS Tuning | ||||
| 10 | 排气软管 | 1 | 09/1993 | 11151739231 | $25.04 | Shop at ECS Tuning |
备注
- +core = plus core charge (possibility of a return of the old part)
