链条箱壳体 for BMW 3 Series E36 318i (1992)

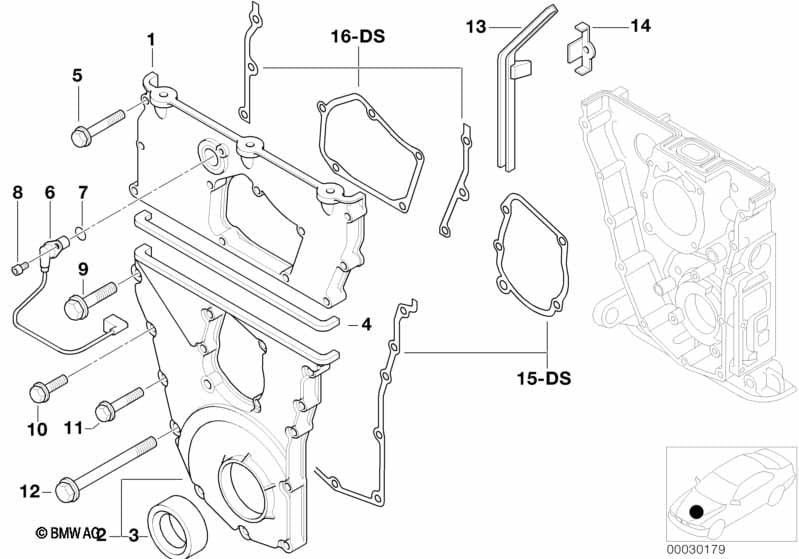

This 链条箱壳体 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 正时齿轮箱盖 上部 | 1 | 01/1994 | 11141727174 | $96.98 | Shop at ECS Tuning | ||||
| 02 | 正时齿轮箱盖 下部 | 1 | 01/1994 | 11141439646 | $158.65 | Shop at ECS Tuning | ||||
| 03 | 轴密封环 | 44X60X10 | 1 | 01/1994 | 11141439570 | $24.92 | Shop at ECS Tuning | |||
| 04 | 成型密封件 | 1 | 01/1994 | 11141247837 | $6.96 | Shop at ECS Tuning | ||||
| 05 | 六角螺栓及平垫圈 | M6X35-U1-8.8 | X | 01/1994 | 07119904589 | $0.47 | Shop at ECS Tuning | |||
| 06 | 信号发生器 | 1 | 01/1994 | 12141734815 | 已经终止 | Shop at ECS Tuning | ||||
| 07 | O 形环 | 18X2 | 1 | 01/1994 | 12141727220 | $0.70 | Shop at ECS Tuning | |||
| 08 | 圆头螺钉 | M6X16 | 2 | 01/1994 | 11421740488 | $0.98 | Shop at ECS Tuning | |||
| 09 | 六角螺栓及平垫圈 | M8X30-ZNNIV SI | 1 | 01/1994 | 07119905532 | $1.25 | Shop at ECS Tuning | |||
| 10 | 六角螺栓及平垫圈 | M6X20 | 4 | 01/1994 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 11 | 六角螺栓及平垫圈 | M6X30-ZNNIV SI | 9 | 01/1994 | 07119906123 | $0.81 | Shop at ECS Tuning | |||
| 12 | 六角螺栓及平垫圈 | M8X80-U1-8.8 | 2 | 09/1993 | 07119906270 | $3.37 | Shop at ECS Tuning | |||
| 13 | 导向装置 | 1 | 01/1994 | 12141727221 | $1.78 | 已经终止 | Shop at ECS Tuning | |||
| 14 | 支架 | 1 | 01/1994 | 12141727777 | $0.75 | 已经终止 | Shop at ECS Tuning | |||
| 15 | 密封组件 正时齿轮箱 不含石棉 | 1 | 01/1994 | 11141721802 | $14.91 | Shop at ECS Tuning | ||||
| 16 | 密封组件 正时齿轮箱 不含石棉 | 1 | 01/1994 | 11141721919 | $8.94 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i 链条箱壳体?
- This technical diagram illustrates the 链条箱壳体 within the 发动机 group for the 3 Series E36 318i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the 正时齿轮箱盖 上部 (Part #11141727174).
- Which models use the hardware listed in this 链条箱壳体?
- The hardware and components featured in the 链条箱壳体 are specific to the 3 Series E36 318i produced during 1992. These technical specifications ensure that parts like the 正时齿轮箱盖 上部 (11141727174) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 链条箱壳体 assembly?
- Each item in the 链条箱壳体 corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the 正时齿轮箱盖 上部 by locating its position on the schematic, which then links to the official BMW part number 11141727174 for the 发动机 section.
