气缸盖罩 for BMW 5 Series E12 518 (1976)

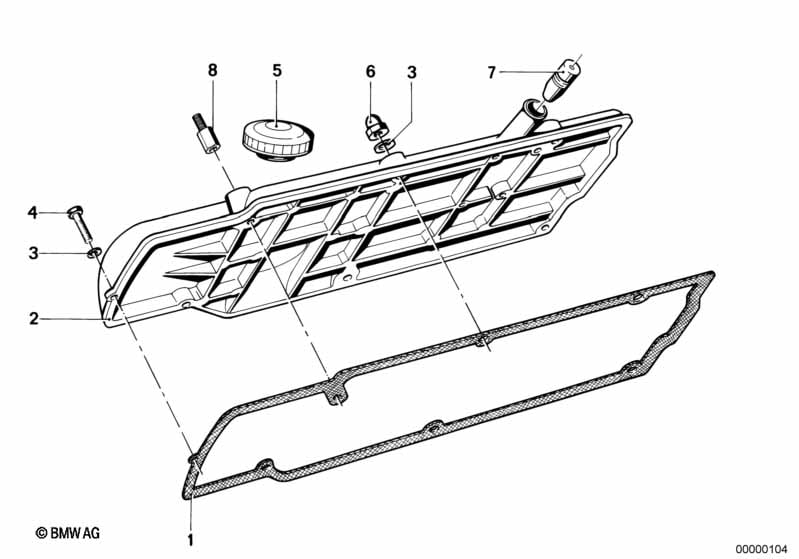

This 气缸盖罩 technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 密封件 不含石棉 | 1 | 11121734215 | 已经终止 | Shop at ECS Tuning | |||||
| 02 | 气缸盖罩 | 1 | 11121270360 | $100.14 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 弹簧垫片 黑色 | B6-ZN | 7 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | 六角螺栓 | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 05 | 密封盖 机油加注口盖 | 1 | 11121716993 | $5.36 | Shop at ECS Tuning | |||||
| 06 | 固定螺帽 | M6 | 6 | 11617549043 | $3.23 | Shop at ECS Tuning | ||||
| 07 | 喷嘴 | 1 | 11121250937 | $0.57 | 已经终止 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
