真空调节 AGR for BMW 7 Series E65 740d (2005)

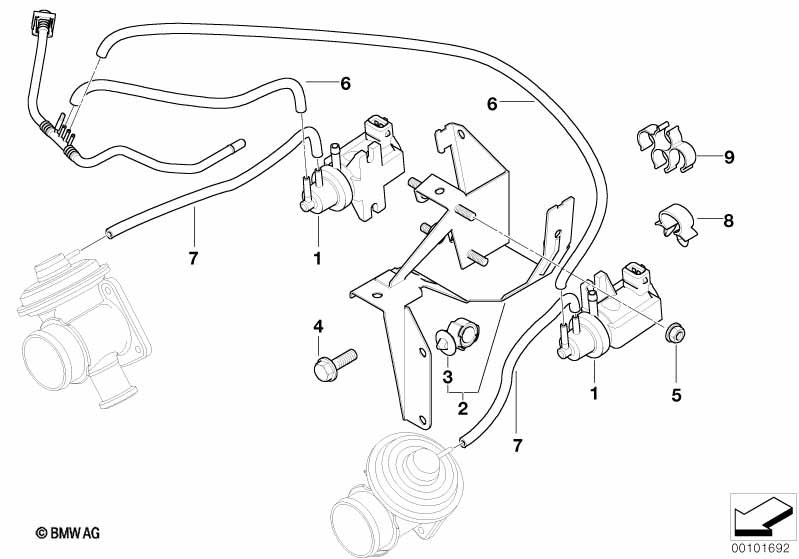

This 真空调节 AGR technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 压力变换器 | 2 | 11747796634 | $128.76 | Shop at ECS Tuning | |||||
| 02 | 压力变换器支架 | 1 | 12527789398 | 已经终止 | Shop at ECS Tuning | |||||
| 03 | 导线架 2 层 | 1 | 61138380213 | $0.35 | Shop at ECS Tuning | |||||
| 04 | 六角螺栓及平垫圈 | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | 六角螺母 | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 06 | 真空软管 Schwarz | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 07 | 真空软管 Blau | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 08 | 导线支架 | D=16,8MM | 1 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 09 | 软管夹头 | 1 | 11747807134 | $1.00 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 740d 真空调节 AGR?
- This technical diagram illustrates the 真空调节 AGR within the 发动机 group for the 7 Series E65 740d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the 压力变换器 (Part #11747796634).
- Which models use the hardware listed in this 真空调节 AGR?
- The hardware and components featured in the 真空调节 AGR are specific to the 7 Series E65 740d produced during 2005. These technical specifications ensure that parts like the 压力变换器 (11747796634) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 真空调节 AGR assembly?
- Each item in the 真空调节 AGR corresponds to the numbered list below the illustration. For the 7 Series E65 740d, you can identify the 压力变换器 by locating its position on the schematic, which then links to the official BMW part number 11747796634 for the 发动机 section.
