阀门控制 偏心轴 for BMW 3 Series F30 328i (2012)

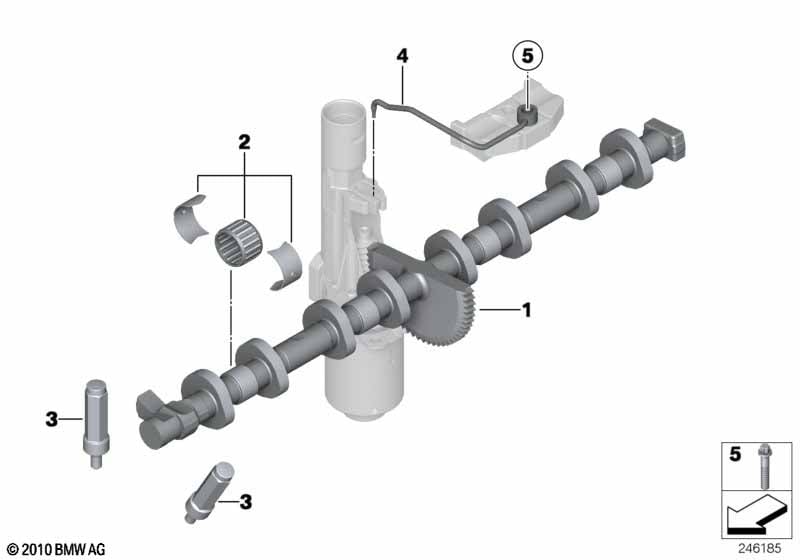

This 阀门控制 偏心轴 technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 偏心轴 | 1 | 11377630747 | +core | Shop at ECS Tuning | |||||
| 02 | 滚针轴承 | 4 | 11377615379 | Shop at ECS Tuning | ||||||
| 03 | 止动螺栓 | 2 | 11378648357 | Shop at ECS Tuning | ||||||
| 04 | 喷油嘴 | 1 | 11377583786 | Shop at ECS Tuning | ||||||
| 05 | 螺栓 | M6X30-8.8 | 1 | 07129904573 | $0.20 | Shop at ECS Tuning |
备注
- +core = plus core charge (possibility of a return of the old part)
