发动机声响 for BMW 1 Series F21 LCI 116d

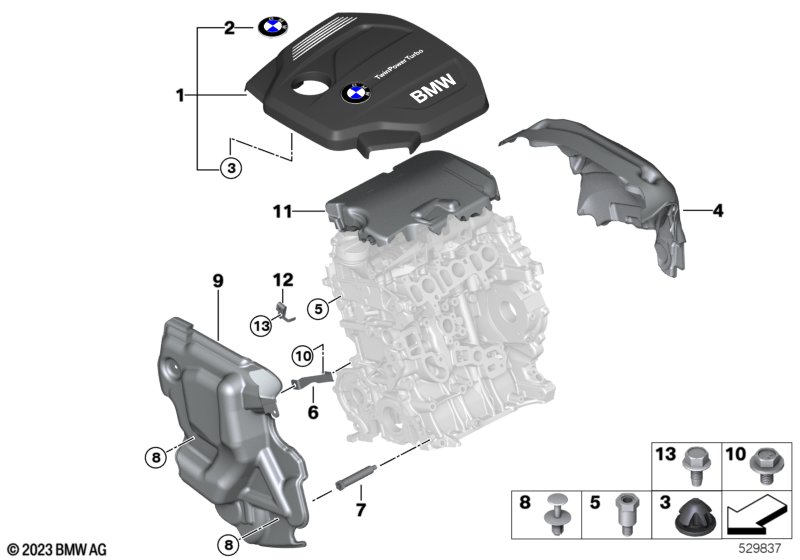

This 发动机声响 technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 116d. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 盖板 声学 | 1 | 11148514198 | Shop at ECS Tuning | ||||||
| 02 | BMW 标志 | 1 | 11147788967 | $11.26 | Shop at ECS Tuning | |||||
| 03 | 缓冲器 | 4 | 11127614138 | Shop at ECS Tuning | ||||||
| 04 | 盖板 声学 后部 | 1 | 11148513138 | Shop at ECS Tuning | ||||||
| 05 | 间隔螺栓 | M8X12/ L=23MM | 1 | 11148580376 | Shop at ECS Tuning | |||||
| 06 | 支架 盖板 | 1 | 11148576915 | Shop at ECS Tuning | ||||||
| 07 | 间隔螺栓 | M8X12 L81,5 | 1 | 11148580379 | Shop at ECS Tuning | |||||
| 08 | 膨胀铆钉 | D = 8MM | 3 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 仅适用于 Korens 公司 生产的废气散热器 |
||||||||||
| 09 | 盖板 声学 前部 | 1 | 11148511644 | Shop at ECS Tuning | ||||||
| 仅适用于 | ||||||||||
| -- | 废气冷却器 | X | 11718574794 | Shop at ECS Tuning | ||||||
| 仅适用于 BorgWarner 公司 生产的废气散热器 |
||||||||||
| 09 | 隔音板 前部 | 1 | 11148490574 | Shop at ECS Tuning | ||||||
| 仅适用于 | ||||||||||
| -- | 废气再循环系统模块 | X | 11717822349 | Shop at ECS Tuning | ||||||
| 10 | 六角螺栓 | M6X12-10.9-MK- | 1 | 34116868785 | Shop at ECS Tuning | |||||
| 11 | 盖板 声学 | 1 | 11148513839 | Shop at ECS Tuning | ||||||
| 12 | 支架 盖板 | 1 | 11148581112 | Shop at ECS Tuning | ||||||
| 13 | 自攻螺栓 | M6X16 ZNS3 | 1 | 07136801211 | $0.53 | Shop at ECS Tuning | ||||
